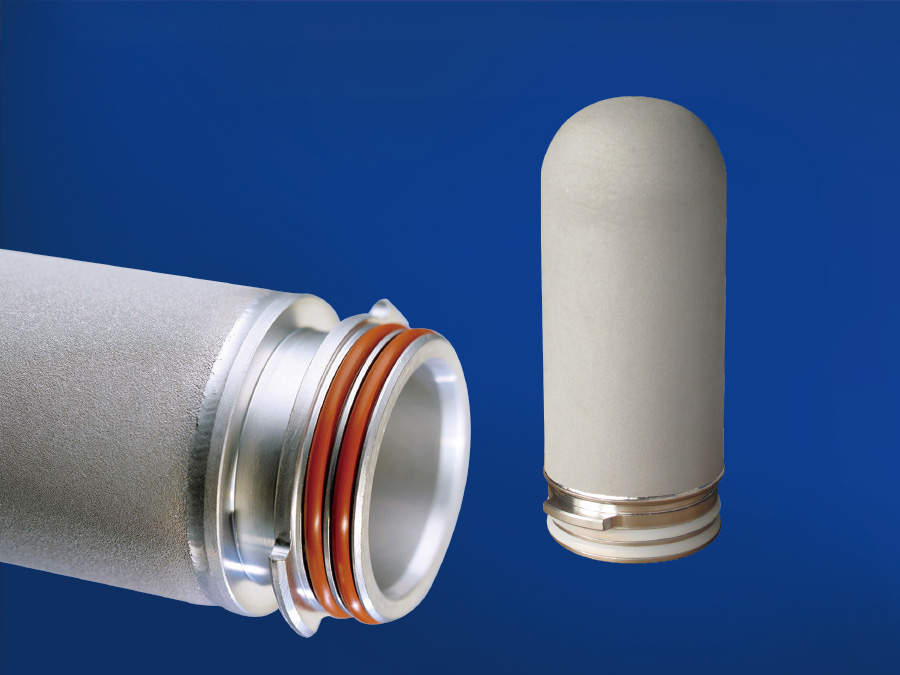

Titanium Powder Sintered Filter Cartridge
Titanium Filter Cartridge is design for applications involving extreme operation conditions and aggressive fluids and gases.The rugged,fixed pore structure is constructed from sintered titanium powder. This filter element can withstand heat, high pressure and repeated cleaning and backwash cycles.Mechanical strength and corrosion resistance are the advantages of a seamless design.
APPLICATIONS
• Steam filtration;
• Prefiltration and decarbonization of high viscosity liquid filtration;
• Removing impurityes of liquids in petrochemical industry;
• Aggressive solvents filtration;
• Highly corrosive liquid and gas purification;
• Liquids or gases filtration at high temperature and pressure;
BENEFITS
• Extremely robust construction, high mechanical strength;
• Ideal for aggressive solvents,viscous and hot solutions;
• Backwashable and cleaned by chemical solvent, hot water,steam, long service life;
• Removal rating from 1.0 to 100 microns;
PRODUCT SPECIFICATIONS
Outside Diameter | 60mm/80mm |
Filter Media | Titanium Powder Sintered |
Inner Core | Stainless steel |
Cage,End Cap | Stainless steel |
Seal Method | TIG welding |
Removal Rating ( µm ) | 1,3,5,10,20,50,100 |
Length (” ) | 10”,20”,30”,40” |
Gaskets/O-ring | S = Silicone E = EPDM B = NBR V = Viton F = E-FKM |
Maximum Operating Temperature | Up to 300°C (572 F) |
Porosity | 35% - 45%
|
