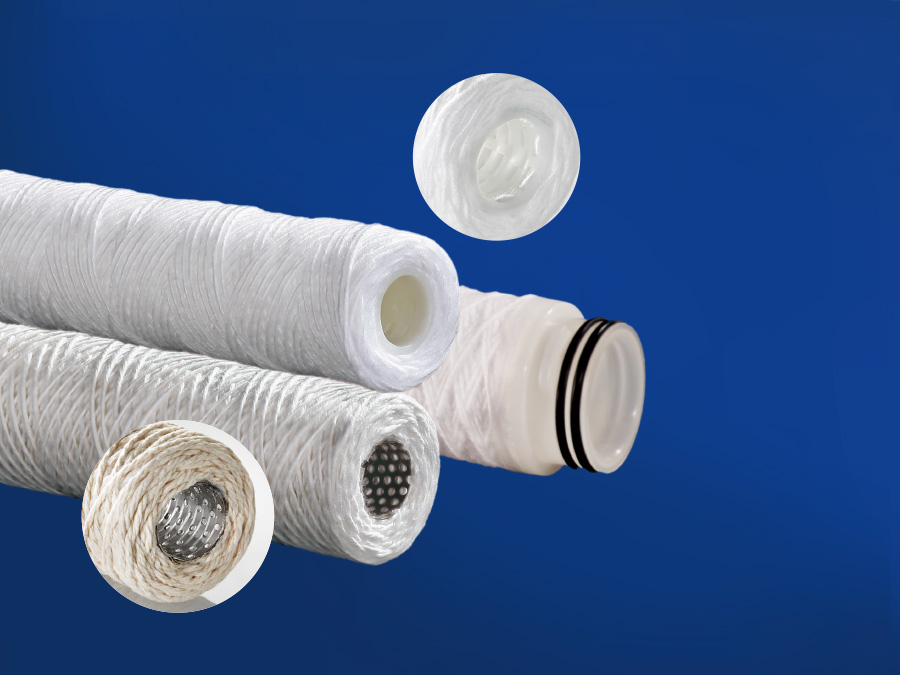

String Wound Filter Element
String wound filter element consists of loose outer layers and tight inner layers which offer true depth filtration for high dirt holding capacity .This filter element can withstand higher PSID and severe operating conditions due to high structural strength.
BENEFITS
•Fits all the standard housings
•Low pressure drop,high dirt holding capacity and long service life
•Loose outer layers and tight inner layers offer effective depth filtration
•Various filter media fit with various applications
APPLICATIONS
•Drinking water treatment
•Food & beverage
•Semiconductor
•Pharmaceuticals
•RO security filtration
PRODUCT SPECIFICATIONS
Outside Diameter | 63mm , 115mm |
Inside Diameter | 28mm , 30mm |
Filter Media | Polypropylene，Bleached Cotton, Glass Fiber |
Core | PP, Stainless Steel |
Removal Rating ( µm ) | 1，3，5，10，20，25，75，100 |
Length ( “ ) | 9.75，9.87，10，20，30，40，50 |
Gaskets/O-ring | S = Silicone ， E = EPDM，B = NBR，V=Viton |
Max Operating Temperature | PP : 80°C Bleached Cotton : 120°C Glass Fiber: 200°C |
Maximum Operation Differential Pressure | 2.5 Bar @ 25°C |
