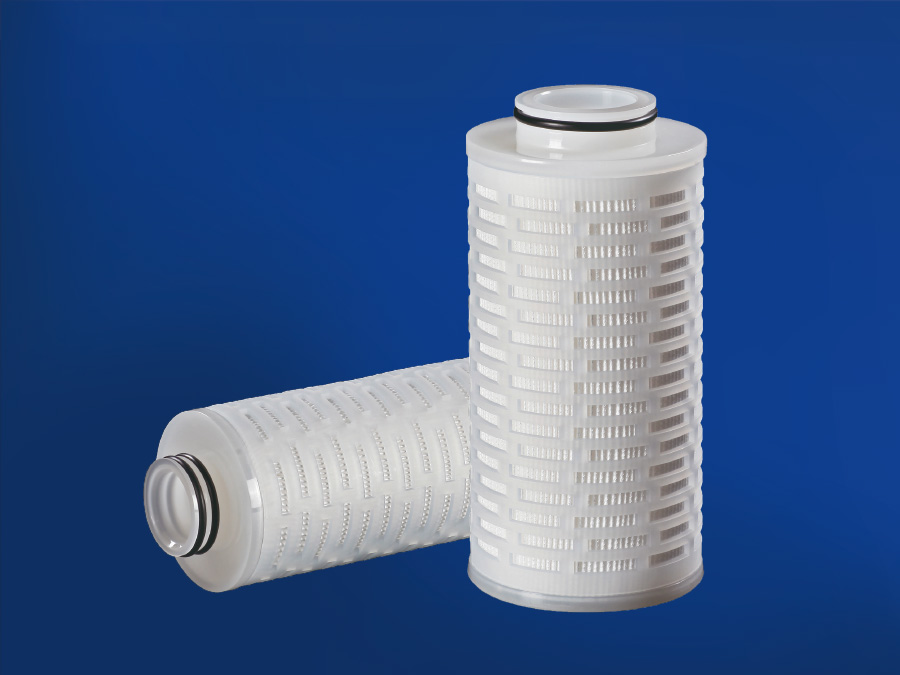

OD83 or OD131 Pleated Filter Cartridge
OD83 or OD131 Pleated filter cartridge is designed for the filtration in the wetting process in the flat panel display.
APPLICATIONS
• Water treatment in microelectronics
• Chemical filtration in microelectronics
BENEFITS
• Larger filtration area, longer service life
• Save cost and easy to replace
• Many media types and micron ratings available
• Safe and reliable material
PRODUCT SPECIFICATIONS
Outside Diameter | 83mm,131mm |
Filter Media | PP, PES, Hydrophobic PTFE, Hydrophilic PTFE |
Support/Drainage | Polypropylene (PP) |
Core/End Cap | Polypropylene (PP) |
Removal Rating ( µm ) | PP:0.1,0.22,0.45,0.5,1,1.2,3,5,10,20,50,70 |
PES:0.04,0.1,0.22,0.45,0.65,1.2, |
Hydrophobic :0.01,0.2,0.05,0.1,0.22,0.45,1,5,10 (PTFE) |
Hydrophilic :0.05,0.1,0.22,0.45,1 (PTFE) |
Length (” ) | 10” |
Maximum Operating Temperature | PP : 80°C |
Maximum Operation Differential Pressure | 4.0 Bar @ 21°C ; 2.4 Bar @ 80°C
|
