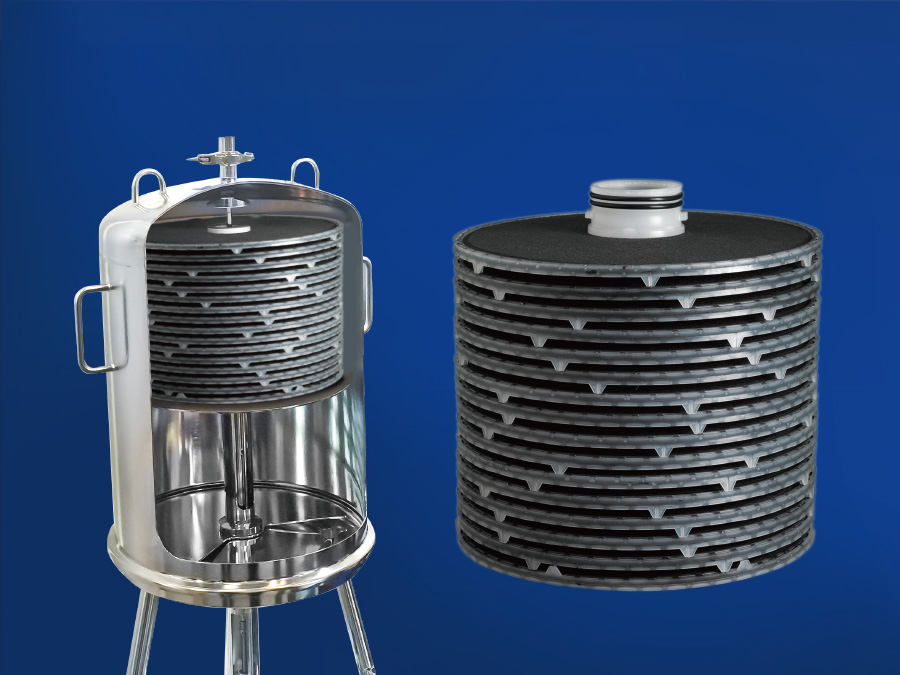

Carbon Lenticular Filter
Carbon Lenticular Filter has activate carbon fiber in the filter based on the standard lenticular filter.
BENEFITS
• No need to do pre wetting before filtration
• Excellent chemical compatibility
• Absolute filtration efficiency
• 100% integrity tested and material
• meet FDA requirements
APPLICATIONS
• Removing dissociative chlorine and volatiles organic compounds (VOC) in solution
• Oil and aromatic series in solution
• Remove smell, odor, organic pigment
• Remove metal ion
PRODUCT SPECIFICATIONS
Outside Diameter | 8'',12'',16'' |
Filter Sheet Material | Carbon cellulose，Activated carbon resins, and etc |
Core and Separator | Polypropylene (PP) |
Typical Rating ( µm ) | 3-5µm |
Double O-ring or flat gasket | Silicone, EPDM, NBR |
O-ring or Gasket | Silicone, EPDM, Viton |
End Cap Types | DOE with Gasket，SOE without double O-ring |
Max Operating Temperature | 80°C |
Max Operating Drop Pressure | 2.0 Bar / 25°C，1.0 Bar / 80°C |
