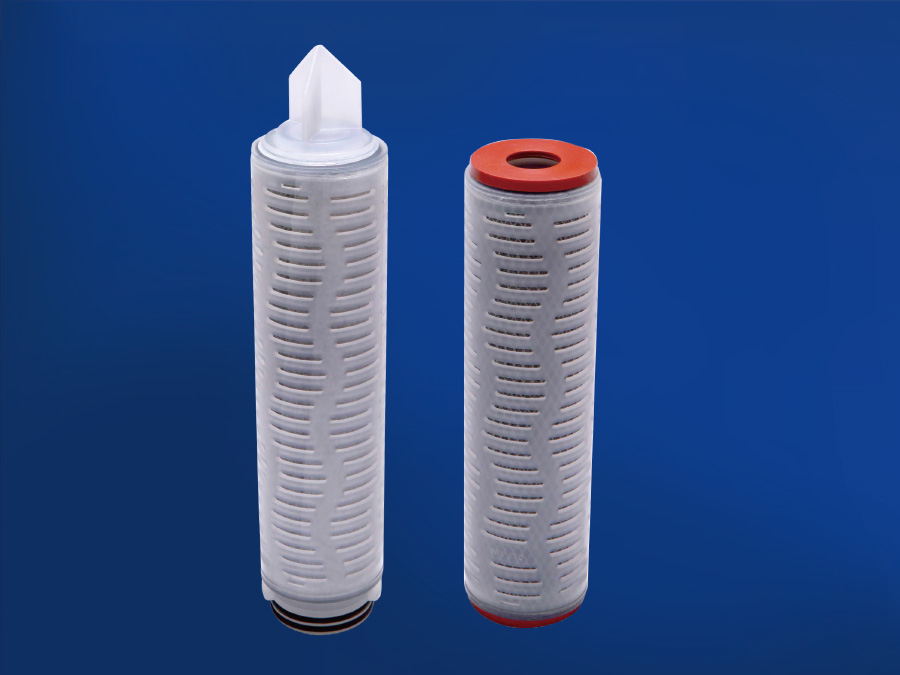

Activated Carbon Fiber Pleated Filter Cartridge
Activated carbon fiber pleated filter cartridge is made of excellent activated carbon fiber and polypropylene components for high precision filtration. It has excellent ability to remove the odor, color and chlorine in liquid.
APPLICATIONS
• Remove the color of intermediates in pharmaceuticals industry
• Organic impurities, chlorine and heavy metal ions removal in bottled water industry
• Alcohol clarification
• Remove the color in the organic solvent BENEFITS
• High dirt holding capacity and no carbon fiber release
• Excellent adsorptive capacity, high particles removal efficiency
• High chlorine taste and odor reduction
• Board chemical compatibility, resistant to acids and bases
• No hazardous substances releasing
PRODUCT SPECIFICATIONS
Outside Diameter | 69mm(2.75'') |
Inside Diamete | 33mm(1.30'') |
Filter Media | Activated Carbon Fiber (ACF) |
Support/Drainage | Polypropylene |
Inner core | Polypropylene |
Out Cage/End Cap | Polypropylene |
Removal Rating ( µm ) | 1,3,5 |
Length (” ) | 10”,20”30”40” |
Seal Material | S = Silicone E = EPDM B = NBR F = E-FKM V = Viton |
Seal Method | Thermal Bonded, No Adhesives |
Filtration Area(m²) | 0.5 m² per 10'' |
Normal Operating Temperature | Up to 50℃ (122℉) |
Maximum Operating Temperature | 80℃ (176℉) at P≤1.0 bar (14psi) |
Normal Flow direction | 4.2 bar (60 psi) at 25℃ (77℉) |
Reverse flow direction | 2.1 bar (30 psi) at 25℃ (77℉) |
PH Value compatibility | 2-13 |
Sterilization | Flush with hot water at 82℃(180℉) for 30 minutes |
Endotoxin | <0.25 EU/ml |
Extractables | 0.03g / 10"
|
