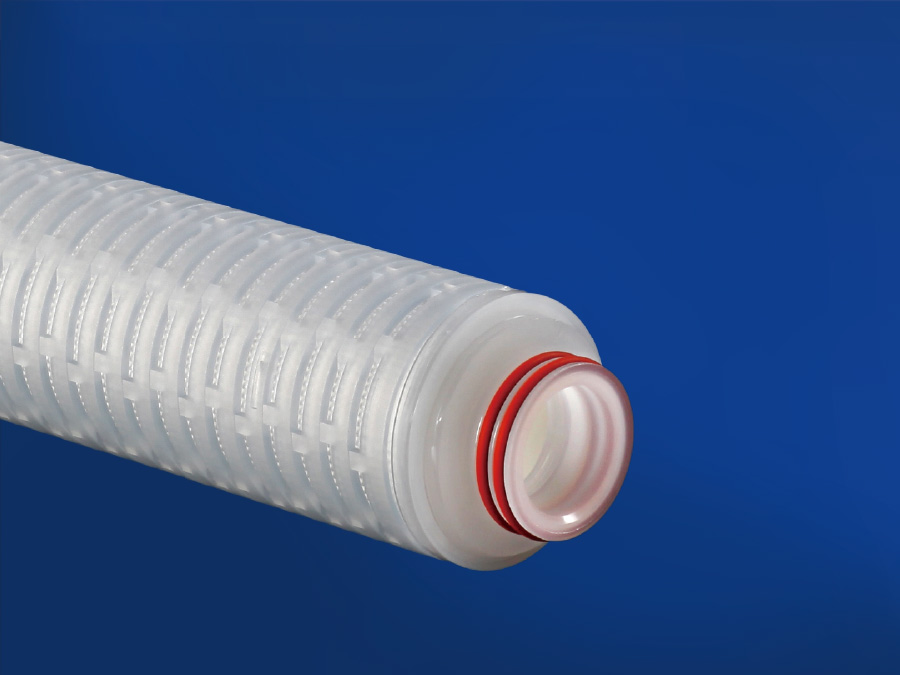

Hydrophobic PTFE / Hydrophilic PTFE Pleated Filter Cartridge with PVDF Cage
HMPF series filter cartridges are designed with PTFE membrane, ECTFE support layer and PVDF outer cage and can resist strong acids, strong bases, organic solvents and corrosive fluids. Flexibility to choose hydrophpbic (HO) orhydrophilic (HP) PTFE membrane to suit different applications.
APPLICATIONS
• Sterile filtration for various water-soluble solvents in the pharmaceutical industry.
• Microelectronics semiconductor industry for wet etching and washing process water.
• Eye drops, sterile filtration of antibiotics.
• Sterile filtration of highly corrosive solvents and organic solvents.
• Filtration of highly corrosive water-soluble chemicals.
• Respirators, fermentation tank, gas sterilization filtration.
BENEFITS
• Excellent performance of high temperature-resistance,repeat steam ability in situ
• Excellent chemical compatibility
• Absolute filtration efficiency
• 100% integrity tested and material meet FDA requirements
PRODUCT SPECIFICATIONS
Outside Diameter | 2.7” (69mm) |
Filter Media | Hydrophobic PTFE or Hydrophilic PTFE |
Support | ECTFE |
Cage/Core/End Cap | PFA,PVDF |
Removal Rating ( µm ) | 0.05,0.1,0.22,0.45,1,10 |
Length (” ) | 9.75”,10”20”,30”,40” |
Seal Material | S = Silicone E = EPDM B = NBR F = E-FKM V = Viton T=Teflon |
Maximum Operating Temperature | 120°C |
Maximum Operation Differential Pressure | Forward 0.42Mpa Reverse 0.21Mpa
|
