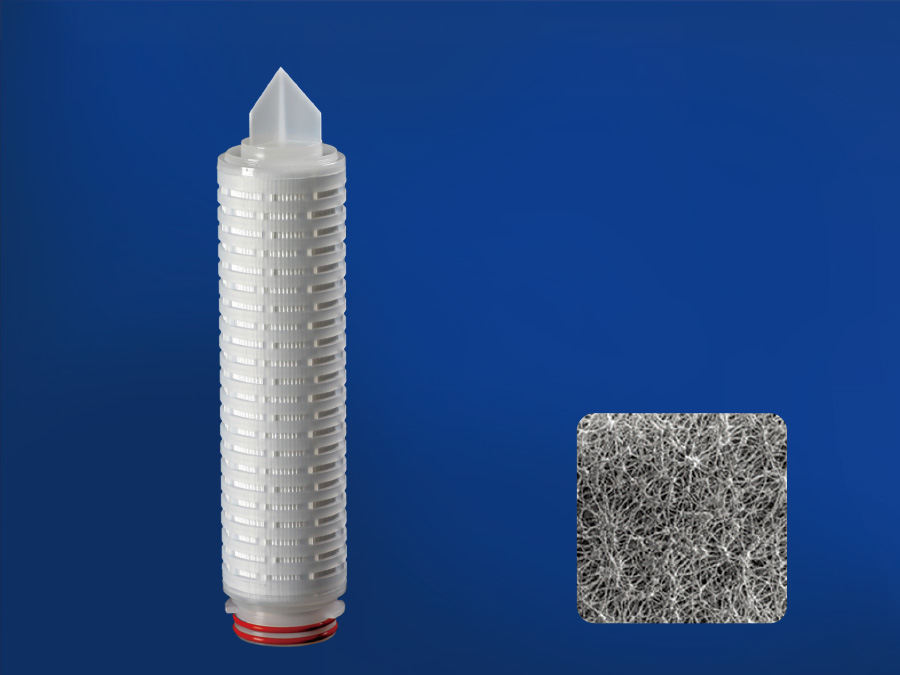

Nylon66 Pleated Filter Cartridge
Nylon Pleated Filter Cartridge is constructed of Nylon66 media and non-woven support materials. Adaptors are thermally welded with media without using any glue, which is free from pollution.
BENEFITS
• Prossessing better performance of high temperature resistance, acid and base resistance
• Hydrophillic membrane with high flow
• Non-fiber releasing according to pharmaceutics and food industry quirements
• 100% integrity tested
• Flushed with ultrapure water
APPLICATIONS
• Pharmaceuticals
• Food and beverage
• Semiconductor
PRODUCT SPECIFICATIONS
Outside Diameter | 2.7” (69mm) |
Filter Media | Nylon66 |
Support/Drainage | Polypropylene (PP) |
Cage/Core/End Cap | Polypropylene (PP) |
Removal Rating ( µm ) | 0.1,0.22,0.45,0.65,1,3,5 |
Length (” ) | 9.75”,10”20”,30”,40” |
Seal Material | S = Silicone E = EPDM B = NBR F = E-FKM V = Viton T=Teflon |
Maximum Operating Temperature | PP : 60°C |
Maximum Operation Differential Pressure | 4.2 Bar @ 25°C |
Maximum Differential Pressure (reverse direction) | 2.1 Bar @ 25°C |
Maximum Temperature Sterilization | 30 times, 30 minutes @ 121°C
|
