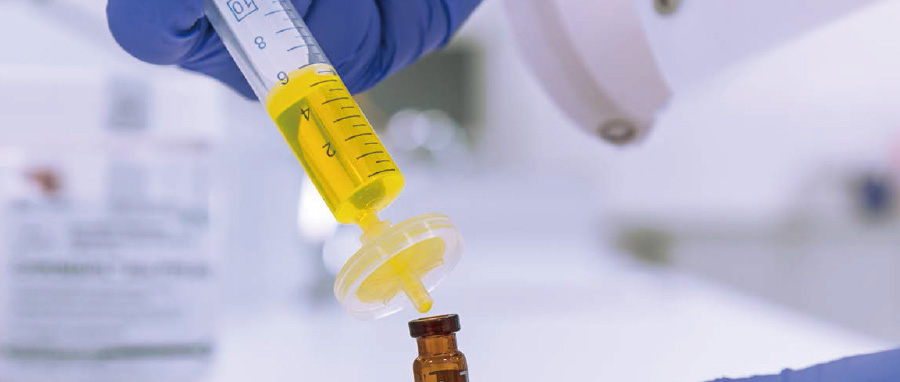

Homay Syringe Filter
Homay Syringe Filters are high quality filters, well packaged, and offered at a competitive price. The classic range is available with membranes including Nylon, PTFE, PES,MCE and PVDF, which are supplied in 13mm, 25mm formats in virgin medical polypropylene housings
BENEFITS
•Application compatibility: broad range of filtration media meets diverse applications needs
•Minimum sample hold-up: syringe Filters housings are specifically designed to maximize sample recovery
•Convenient: each unit is clearly marked with an identifying code to denote pore size, membrane material
•Sterile: filters can be purchased pre-sterilized by Gamma radiation and individually packaged
APPLICATIONS
•HPLC sample preparation
•Routine QC analysis
•Content uniformity
•Removal of protein precipitates
•Dissolution testing
•Food analysis
•Biofuel analysis
•Environmental samples
PRODUCT SPECIFICATIONS
Filter Media | Nylon ，PTFE， PES ，CA， PP， CE |
Diameter | 013 = 13 mm，025 = 25mm |
Pore Size | 022= 0.2 µm，045= 0.45 µm |
PARAMETERS 13mm 25mm |
Housing material | Virgin Medical | Polypropylene |
Effective Filtration area（cm2) | 1.0 | 4.08 |
Pore Size（ um） | 0.22,0.45...... |
Holdup volume（µ） | <25 | <100 |
Sample volume（ml） | <10 | <100 |
Inlet connection | Female luer lock |
Outlet connection | Male luer slip |
Maximum Operating Temperature | 50°C | 50°C |
Maximum Operating Pressure（bar） | 6 | 6 |
