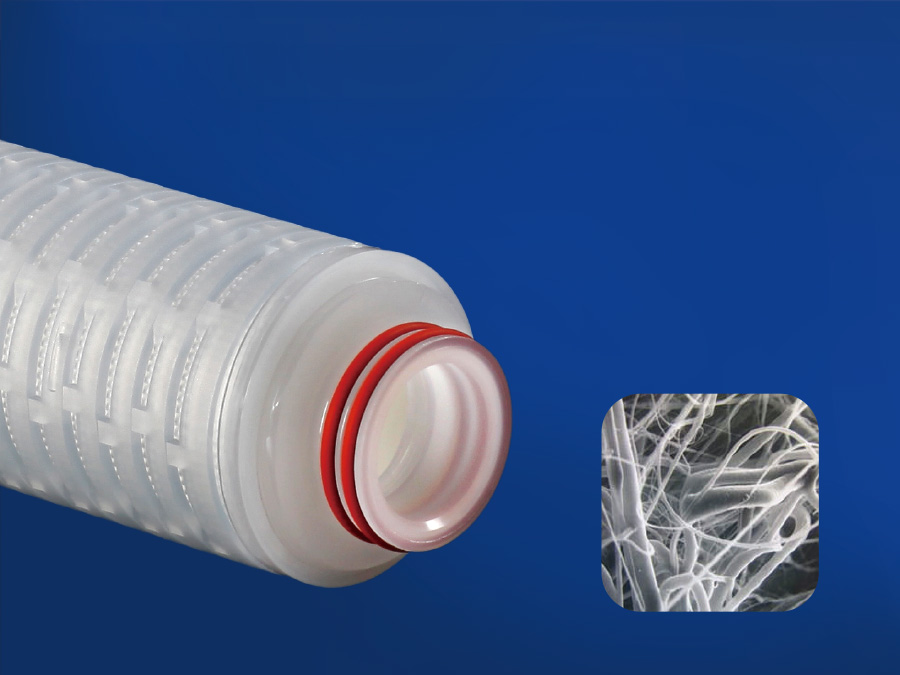

PP/Glass Fiber Pleated Depth Media Filter Cartridge
High surface area pleated cartridges have been developed to suit industrial processes where high levels of efficiency and extremely low pressure loss are required. In-house developments have optimized the filter media to give higher levels of porosity, and state of the art manufacturing technologies give excellent build quality. Three standard media options are available. Other more media options are available for special application.
BENEFITS
• Pharmaceutics
• Food and beverage
• Oil & gas
• Microelectronics
• Chemical
• Prefiltration for RO
• Photographic solutions
APPLICATIONS
• Low pressure drop, long service life
• Graded pore density for high dirt holding capacity
• Wide chemical compatibility using 100% polypropylene to meet FDA requirements
• Nominal micron rating and absolute micron rating are available.
PRODUCT SPECIFICATIONS
Outside Diameter | 2.7” (69mm) |
Filter Media | PP or Glass Fiber |
Support/Drainage | Polypropylene (PP) |
Cage/Core/End Cap | Polypropylene (PP) |
Removal Rating ( µm ) | 0.1,0.22,0.45,1,3,5,10,20,50 |
Length ( ‘’ ) | 5”,9.75”,10”20”,30”,40” |
Seal Material | S = Silicone E = EPDM B = NBR F = E-FKM V = Viton T=Teflon |
Maximum Operating Temperature | PP : 80°C @1Bar, support adaptors are recommended for temperature exceeds 50°C Glass Fiber : 110°C @1Bar, support adaptors are recommended for temperature exceeds 80°C |
Maximum Operation Differential Pressure | 4.0 Bar @ 20°C 2.4 Bar @ 80°C
|
008 Micro PP Pleated Depth Media Filter Cartridge.pdf
