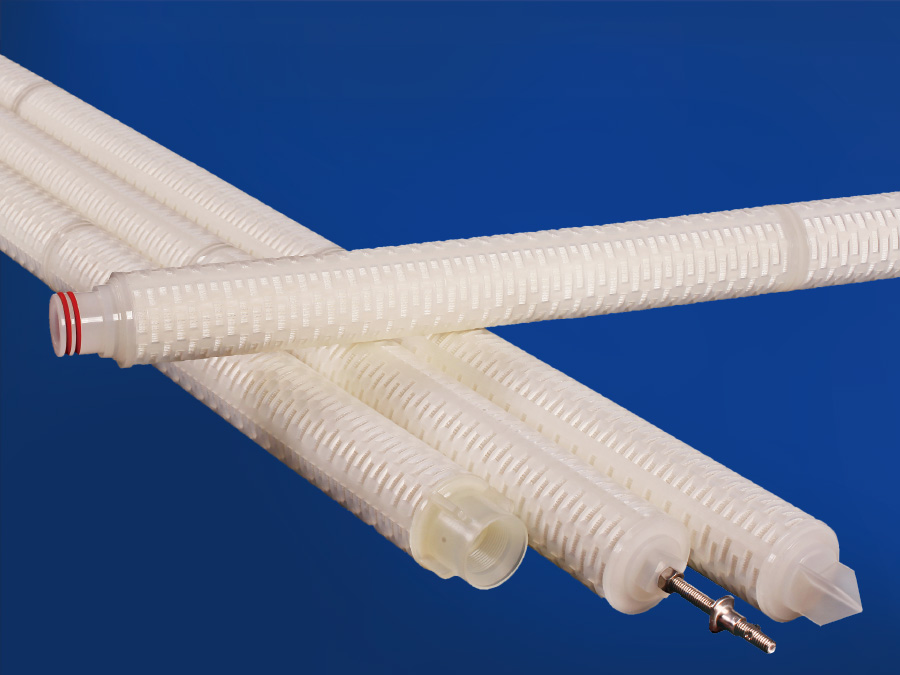

PP Pleated Power Plant Filter Cartridge
This pleated backwash filter cartridge is most widely used in condensate polishing pre-filtration in domestic and abroad.The Pleated design has an increased filtration area and wide chemical compatibility. It can be welded by 7pcs×10’’ parts or 3pcs×20+10’’ parts or 40’’+30’’ parts.
APPLICATIONS
• Power plant condensate polishing system
• RO Prefiltration, sea water desalination
• Filtration of bottled water, make-up water, rinsing water
• Paints and coatings, petrochemical, refineries
BENEFITS
• Backwash design
• Using thread connection, easy installation, high dirt holding capacity
• Wide chemical compatibility
• Resin pre-coat can be done before filtration
PRODUCT SPECIFICATIONS
Filter Media | Polypropylene |
Support/Drainage | Polypropylene (PP) |
Connection type | Thread |
Connection size | 1 1/2’’-12 (Internal Thread) M33×1.5 (Internal Thread) customized as customer request |
Outer Diameter | 65mm or 69mm |
Filtration Area | 0.65m²/10’’ |
Removal Rating ( µm ) | 1,4,5,10 |
Length ( ‘’ ) | 60”,70” |
Maximum Operating Temperature | 85°C |
Maximum Differential Pressure | 2.8 Bar , 65°C |
Maximum Differential Pressure | 2.1 Bar , 21°C |
Flow of Single Cartridge(m³/h) | 3.9 - 4.5 |
Backwashing Flow | In the 1.36 - 2.10 Bar pressure, Backwashing Flow of single cartridge is 0.45 - 0.68m³/h |
Backwashing Air Flow | In the 1.36-2.10 Bar pressure, Backwashing Flow of single cartridge is 3.4 - 5m³/h
|
