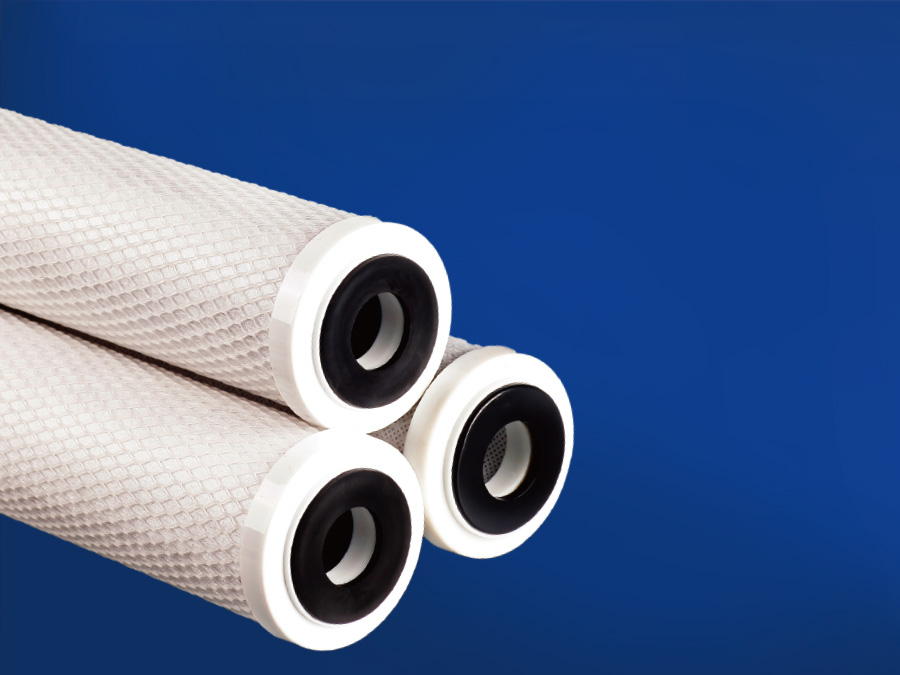

Chlorine Reduction Activated Carbon Filter Element
Chlorine Reduction Carbon Filter Element is extruded by carbon fines or carbon or carbon powder with food-grade additives, also with NSF approved gaskets to ensure the whole process of using is safe and effective. Besides holding up particle impurities, getting rid of smells, this cartridge can also safety and efficiency of the filtration process. reduce chlorine and chloramine, heavy metal in water effectively. This will improve the safety of drinking water and industrial.
BENEFITS
•Good adsorption capacity
•Remove efficiently the chlorine, small particals, organics
•Low pressure drop,steady flow
•No carbon fine releasing
APPLICATIONS
•Drinking water treatment
•Food and beverage
•Chemical and plating
PRODUCT SPECIFICATIONS
Outside Diameter | 63mm , 70mm，115mm |
Filter Media | Acid Washed Coal Based GAC Coconut Carbon |
Netting | Polyethylene |
End Caps | Polyethylene |
Removal Rating ( µm ) | 0.5，1，5，10 |
Length ( “ ) | 9.75，9.87，10，20，30，40 |
Seal Material | S = Silicone E = EPDM B = NBR |
Max Operating Temperature | 52℃ |
Maximum Differential Pressure | 7 Bar@20℃ |
Maximum Operating Pressure | 10Bar |
