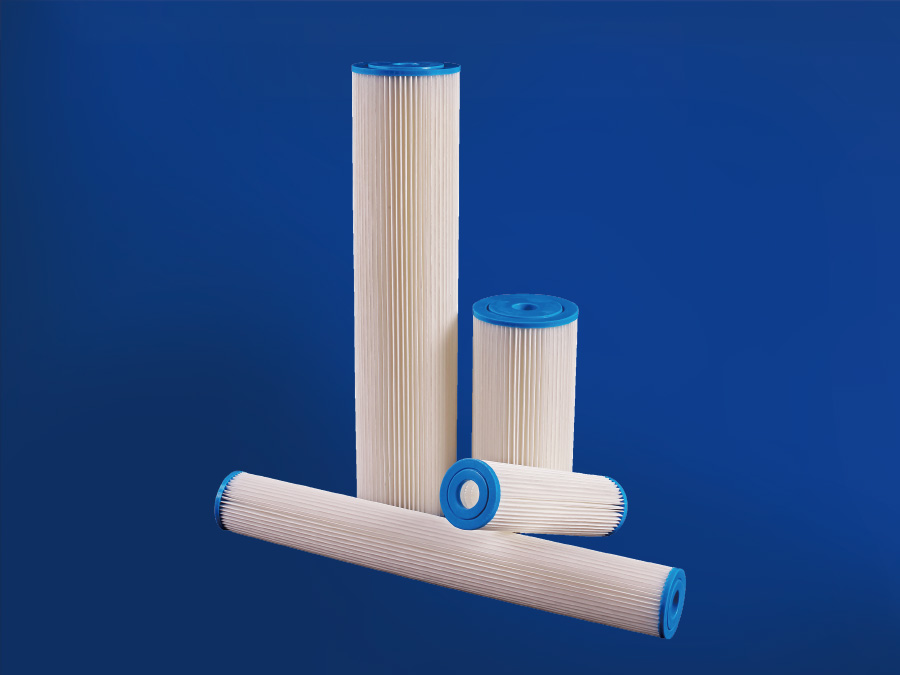

Pleated Filter Element
Standard pleated filter cartridges are made of pleated polyester filter media, which is characterized by low pressure drop, increased surface area and long service life.
BENEFITS
•Pleated design increased surface area and contaminant removal
•Longer filtration runs for fewer change-out and less maintenance
•Low pressure drop
•Designed for general water filtration purposes applications
APPLICATIONS
•General water and R.O treatment
•Food and beverage
•Acid-base liquid in chemical processing
•Industrial chemicals and organic solvents
PRODUCT SPECIFICATIONS
Outside Diameter | 63mm , 115mm |
Inside Diameter | 28mm |
Filter Media | Polyester, PP |
Core | PP, Stainless Steel |
End Caps | PU/Plastisol |
Removal Rating ( µm ) | 1，5，10，20，50 |
Length ( “ ) | 9.75，9.87，10，20，30，40，50 |
Max Operating Temperature | 37.8℃ |
Maximum Operation Differential Pressure | 4.0 Bar |
Flow rate per 10'' cartridge | 3-10 GPM,depend on removal rating |
