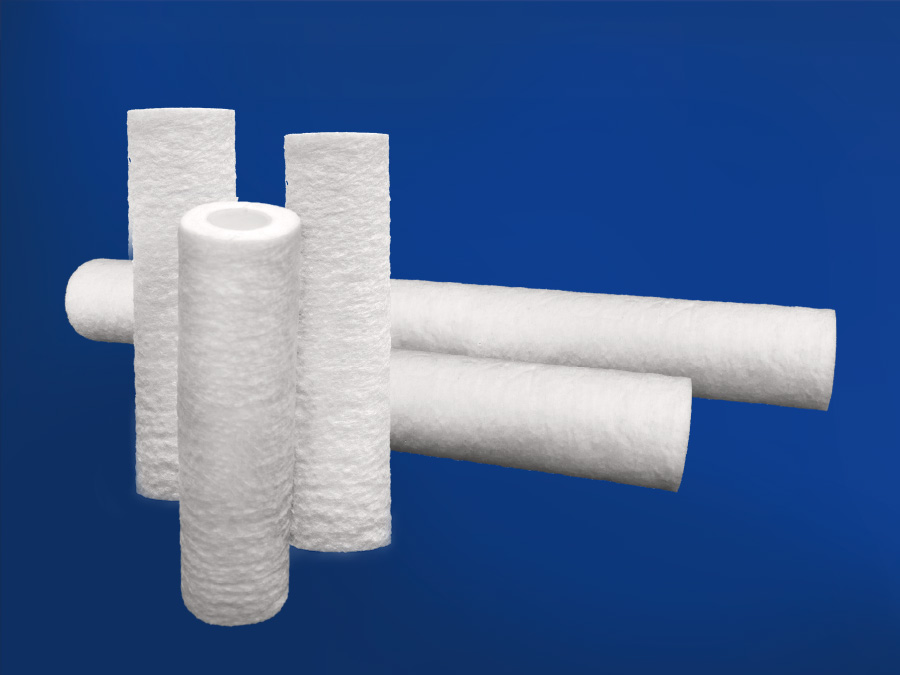

Nylon Melt Blown Filter Element
Nylon Melt Blown Depth Filter Element is suitable for high temperature application.The strength of the filter can be improved by adding cores.
BENEFITS
•High temperature resistance up to 120℃
•Especially to solvents,hydrocarbons and aromatics
•FDA CFR-21 compliance material
APPLICATIONS
•Food and beverage
•Petrochemical
•Cosmetic
•Pharmaceutical
•Resin coating
•Fine chemical
PRODUCT SPECIFICATIONS
Outside Diameter | 63mm |
Inside Diameter | 28mm |
Filter Media and End Caps | Nylon |
Core | Polypropylene (PP)，Glass Fiber , Nylon |
Removal Rating ( µm ) | 1，3，5，10，20，25，75，100 |
Length ( “ ) | 9.75，9.87，10，20，30，40 |
Gaskets/O-ring | S = Silicone ， E = EPDM，B = NBR，V=Viton |
Max Operating Temperature | 120℃ |
Maximum Operation Differential Pressure | 1-25µm,2.5Bar at 21°C 50-100µm,1Bar at 21°C without core |
Efficiency | ＞90% |
