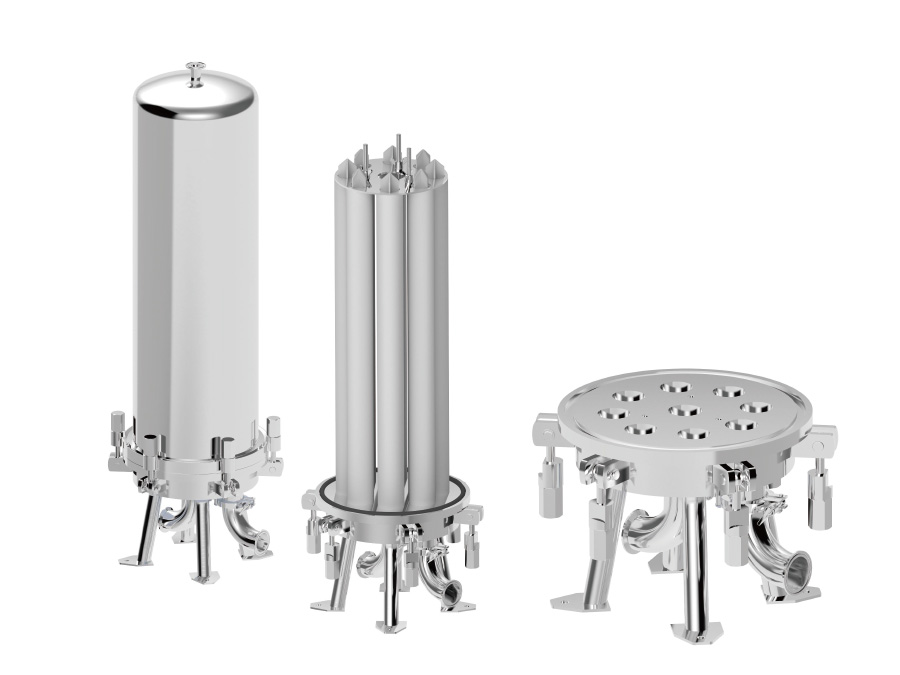

Liquid Filter Housing
The Liquid filter housing is made of SUS304 or SUS316L stainless steel, with pleated filter cartridge as filter element, The system is used for liquid and gas filtration. It has fast filtration speed, less adsorption, no media falling off, no leakage, acid and alkali resistance, corrosion resistance, easy cleaning, and can be back washed. They are ideal filtration equipment for biomedicine, electronics, beer, beverage, chemical, water treatment and other industries.
BENEFITS
• Small size, light weight and convenient use;
• Low plugging rate, fast filtration speed, no pollution, good thermal and good chemical stability.
• Internal and external surface are mirror polised with sanitary standards.
• The filter socket is made of precision boring, and the filter element is installed accurately and quickly
TECHNICAL PARAMETERS
• Design pressure: 0.6/0.8/1.0Mpa, can be customized according to special requirements
• Design temperature: 5 ℃ ~ 100 ℃ (over 60 ℃ need to inform)
• Sealed type: O-ring or Flat Gasket
• Interface form: GB, HG, DIN, ANSI, JIS standard flange, thread, Tri clamp, etc.
• Applicable filter: Flat, Thread, 222 & 226 Filter, etc.
• Material: SS304, 316L, Carbon steel lined rubber
