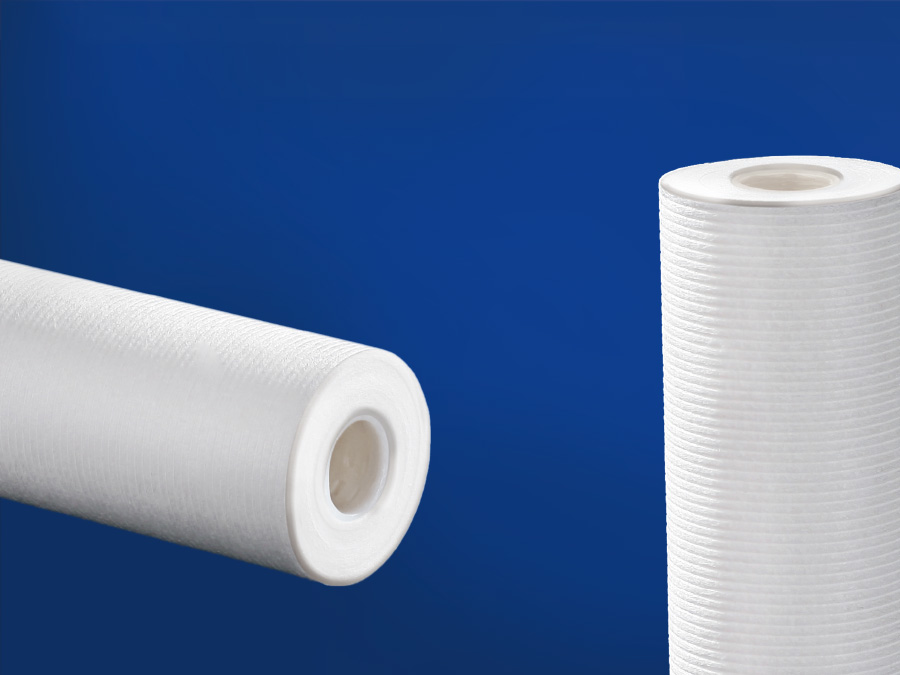

Wrapped Melt Blown Filter Element for ABSil Replacement
WP filter cartridges are constructed of conjugated fiber. The conjugated fiber is thermally bonded because of the difference in melt temperature between two components. Accordingly, the stability and uniformity of filter pores are better than flat filters
BENEFITS
•Long service life
•High flow rate
•Free of media migration
•Withstand high differential pressure
•Stable pore size
•Excellent chemical compatibility
APPLICATIONS
•Electronics: IC& LCD cleaning water, PCB, plating solutions etc
•Water treatment: washing water, prefiltration for pure water
•Chemical processing fluids: coatings/printing inks, resin, adhesives, solvents, surfactants etc
•Pharmaceuticals dialyzer, health dare, beverages, cosmetics etc
•Food& Beverage: beer, soft drinks, edible oil, brewery, soya sauce etc
PRODUCT SPECIFICATIONS
Outside Diameter | 63mm |
Inside Diameter | 30mm |
Filter Media | Conjugated Fiber（PP+PE） |
Removal Rating ( µm ) | 1，3，5，10，20，25 |
Length ( “ ) | 10，20，30，40， |
Max Operating Temperature | 80℃ |
Maximum Operation Differential Pressure | 70psi（4.8bar）@ 25°C |
