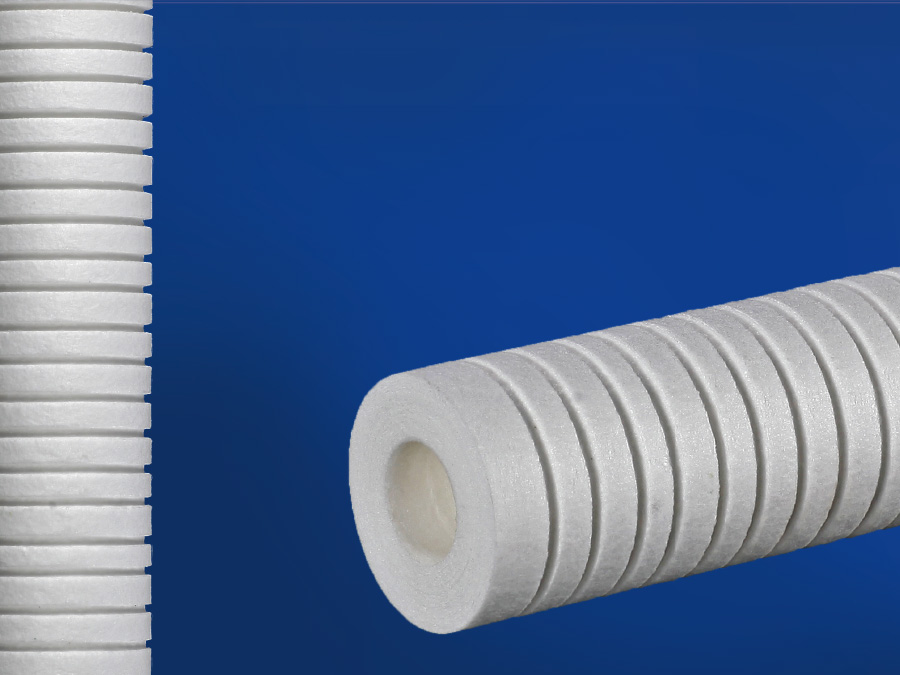

PP Melt Blown Filter Element with Deep Groove for 3M Replacement
This new type of deep grooved surface greatly extend the filtration surface area, leading to higher flow rate and lower pressure drop.
BENEFITS
•47% more surface area with deep groove
•Up to 30% longer lifetime
•50% more efficient
•FDA CFR-21 compliance material
•All kinds of end caps are available.
APPLICATIONS
•Drinking water treatment
•Electronic
•RO security filtration
•Plating
•Chemicals, solvents
•Food and beverage
PRODUCT SPECIFICATIONS
Outside Diameter | 63mm , 115mm or customized diameter |
Inside Diameter | 28mm , 30mm |
Filter Media and End Caps | Polypropylene (PP) |
Core | Polypropylene (PP) |
Removal Rating ( µm ) | 1，3，5，10，20，25 |
Length ( “ ) | 9.75，9.87，10，20，30，40， |
Gaskets/O-ring | S = Silicone ， E = EPDM，B = NBR，V=Viton |
Max Operating Temperature | 80℃ |
Maximum Operation Differential Pressure | 2.0 Bar / 21°C |
013 PP Melt Blown Filter Element with Deep Groove for 3M Replacement.pdf
