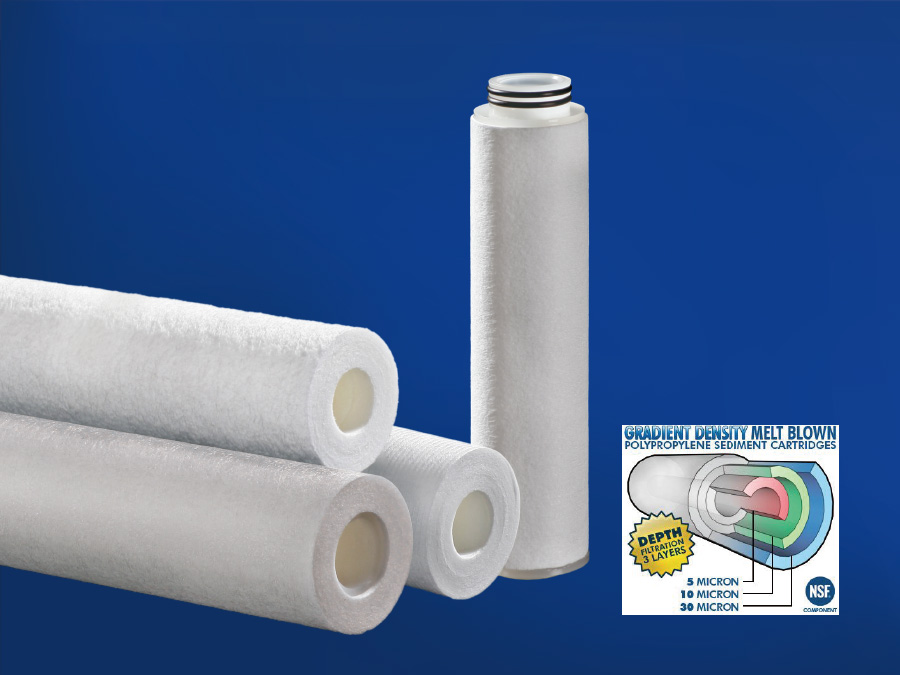

PP Melt Blown Filter Element
Homay PP Melt Blown Filter Cartridge consists of three layers of fine fibers in surface. It’s your economic option.
The surface can be smooth surface, orange surface, mini groove surface or deep groove surface to meet your different requirements.
BENEFITS
• FDA CFR-21 compliance material
• Wide chemical compatibility
• Groove design to extend the filtration surface area
• All kinds of end caps are available.
APPLICATIONS
• Drinking water treatment
• Electronic
• RO security filtration
• Plating
• Chemicals & solvents
• Food and beverage
PRODUCT SPECIFICATIONS
Outside Diameter | 63mm , 115mm or customized diameter |
Inside Diameter | 28mm , 30mm |
Filter Media and End Caps | Polypropylene (PP) |
Core | Polypropylene (PP) |
Removal Rating ( µm ) | 1，3，5，10，20，25，50，75，100，150 |
Length ( “ ) | 9.75，9.87，10，20，30，40，50，60 |
Gaskets/O-ring | S = Silicone ， E = EPDM，B = NBR，V=Viton |
Max Operating Temperature | 80℃ |
Maximum Operation Differential Pressure | 2.0 Bar / 21°C |

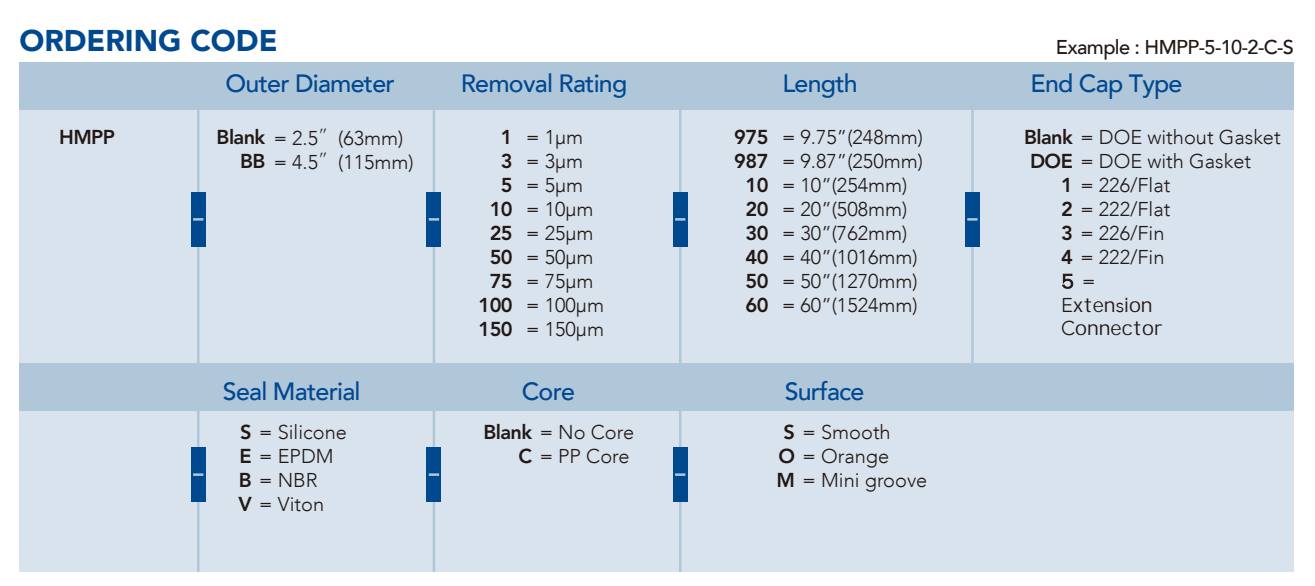

If need to make ID28mm×OD 63mm×Length 1016mm,5 micron, 500grams, Please Use Part No. HMPP-5-40
If need to make ID28mm×OD 63mm×Length 1016mm,1 micron, 500grams, Please Use Part No. HMPP-1-40
012 PP Melt Blown Filter Element.pdf
