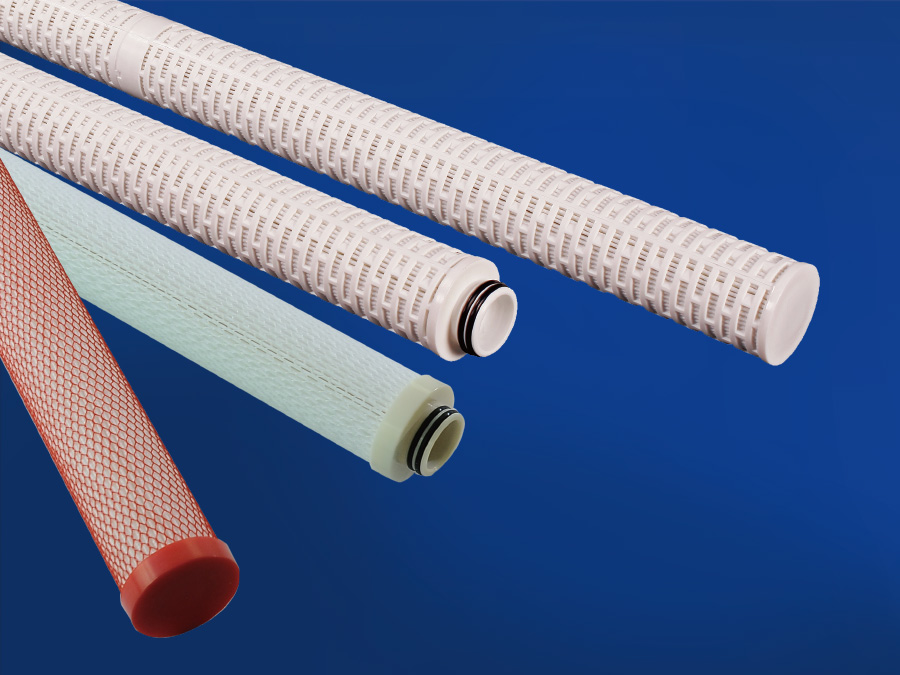

Offshore Pleated Filter Cartridge
Offshore pleated filter cartridges is widely used in the offshore injection water treatment. Due to large filter area and design, The number of cartridges are reduced. It has netting type and cage type for customer option.
APPLICATIONS
• Chemical
• Oil & gas Industry
• Metal treatment process water
• Electronics
• Prefiltration
BENEFITS
• Large filter area and depth filtration provide a long lifetime.
• Low cost because of large filter area and reduced labor costs to change.
• The sbsolute glass fiber media supplies optimal efficiency of solids removal.
PRODUCT SPECIFICATIONS
Filter Media | Polypropylene(PP) |
Outside Diameter | 64mm , 66mm (netting type only) 69mm (netting type only) |
Inside Diameter | 28mm |
Cage | Polypropylene(PP) |
Operating Pressure and temperature | The pleated cartridge structre will withstand differential Pressures up to 60 psi (4Bar) at ambient temperature. The optimum changeout differential pressure is 35psi(2.5Bar) up to 52°C |
Service condition | 500 Kpa ( 5Bar ) by 20°C 300 Kpa ( 3Bar ) by 65°C Beta: 5000(99.98% removal efficiency) for glass fiber media. Construction: Fully thermal welded. |
Removal Rating ( µm ) | 1,2,5,10,20,50 |
Length ( “ ) | 30”,40” |
Seal Material | Silicone, EPDM, NBR, Viton |
End Cap Types | DOE, 222/Flat End
|
