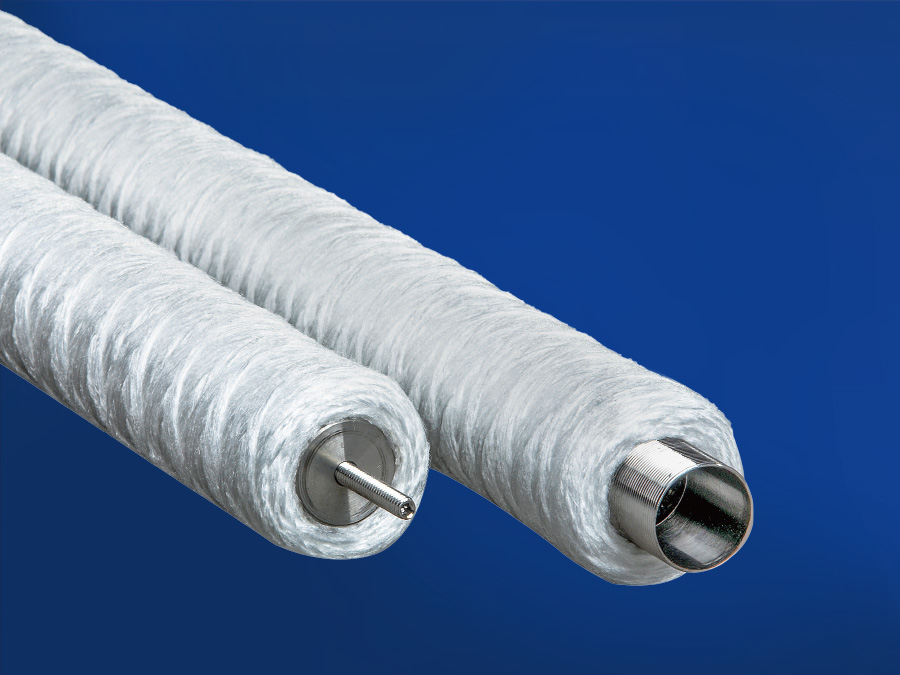

String Wound Power Plant Filter Cartridge
HMPSW string wound filter cartridge is washable depth filter with high performance fiber (polypropylene, cotton, glass fiber etc.,). It can be easily change-out to save labor and get large filtration area and long service life with high flow rate.
APPLICATIONS
• Power plant condensate polishing system
• RO Prefiltration, sea water desalination
• Filtration of bottled water, make-up water, rinsing water
• Paints and coatings, petrochemical, refineries
BENEFITS
• Directly installed into existed housings
• High mechanical strength,withstand harsh processing conditions
• Up to70’’ length with high flow and high dirt holding capacity
PRODUCT SPECIFICATIONS
Outside Diameter | 50mm or 60mm |
Inside Diameter | 25mm or 28mm |
Filter Media | Polypropylene,Cotton,Glass Fiber |
Support//Core/Caps | Stainless Steel 304 or 316 |
Connection type | Thread |
Connection size | M33×1.5 (internal thread) M33×2 or customized as customer request |
Maximum Operating Temperature | 85°C |
Maximum Operation Differential Pressure | 3.0 bar @ 90°C |
Design Flow Rate | 2.2m³/h - 2.8m³/h (Recomended 2.5m³/h) |
Removal Rating ( µm ) | 1,5,10 |
Length ( “ ) | 40”,60”70” |
Core | SS304 , SS316
|
