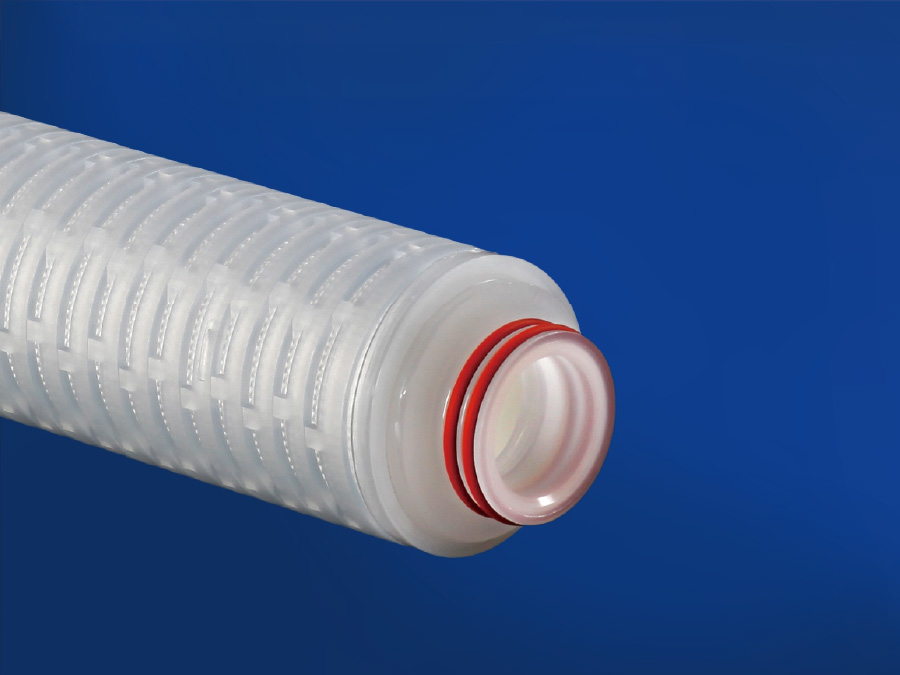

Hydrophilic PVDF Pleated Filter Cartridge
This type has excellent resistance to high temperature and corrosion resistance, no fiber shedding. Filter media has good hydrophilicity, no need to do pre-wetting before filtration.
APPLICATIONS
• Pharmaceutics
• Food and beverage
• Microelectronics
• Chemical
BENEFITS
• No need to do pre-wetting before filtration.
• Excellent chemical compatibility
• Absolute filtration efficiency
• 100% integrity tested and material meet FDA requirements
PRODUCT SPECIFICATIONS
Outside Diameter | 2.7” (69mm) |
Filter Media | Hydrophilic PVDF |
Support/Drainage | Polypropylene (PP) |
Cage/Core/End Cap | Polypropylene (PP) |
Removal Rating ( µm ) | 0.1,0.22,0.45,0.65,0.8,1.2 |
Length (” ) | 5”,9.75”,10”,20”30”40” |
Seal Material | S = Silicone E = EPDM B = NBR F = E-FKM V = Viton T=Teflon |
Maximum Operating Temperature | PP : 80°C |
Maximum Operation Differential Pressure | 4.0 Bar @ 20°C 2.4 Bar @ 80°C
|
