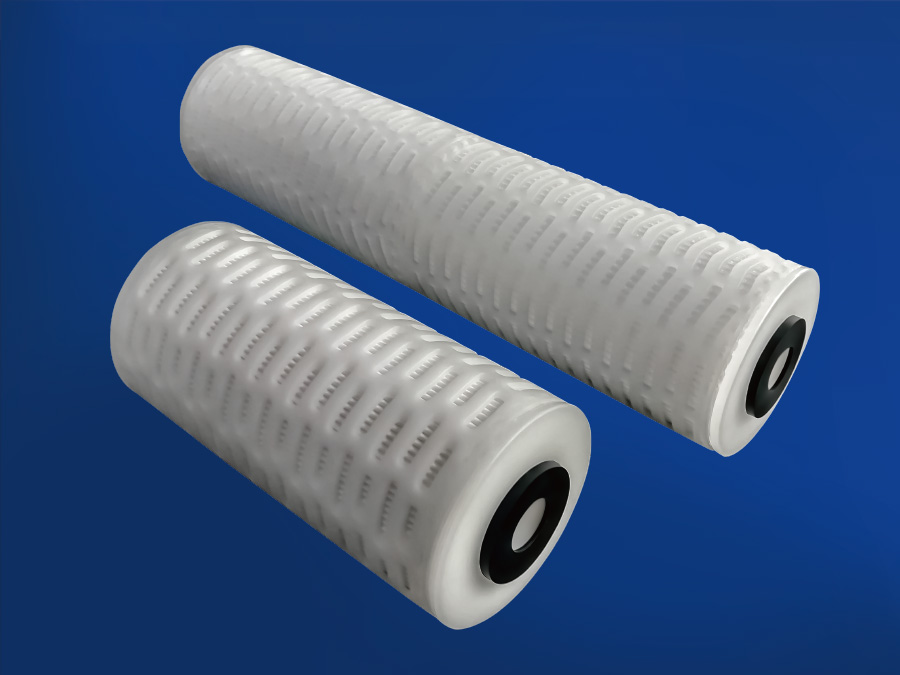

OD115 Big Blue Pleated Filter Cartridge
OD115 big blue Pleated filter cartridge can replace the conventional depth big blue filters to improve the output and reduce the costs.
APPLICATIONS
• Drinking water
• Commercial water treatment
• RO Pre-filtration
• Small and medium size water treatment systems
BENEFITS
• Larger filtration area, longer service life
• High performance filter media for high efficiency
• Easy to replace the conventional big blue systems
• Many media types and micron ratings available
• FDA compliant material
PRODUCT SPECIFICATIONS
Outside Diameter | 115mm |
Inside Diameter | 28mm |
Filter Media | PP, Glass Fiber, PES |
Support | Polypropylene (PP) |
Cage/End Cap | Polypropylene (PP) |
Removal Rating ( µm ) | PP:0.1,0.22,0.45,0.5,1,1.2,3,5,10,20,50 |
PES:0.1,0.22,0.45,0.65,1.2, |
Glass Fiber：0.45,1,3,5,10,20 |
Length (” ) | 10”,20” |
Seal Material | S = Silicone E = EPDM |
Maximum Operating Temperature | PP : 80°C |
Maximum Operation Differential Pressure | 4.0 Bar @ 21°C 2.4 Bar @ 80°C |
