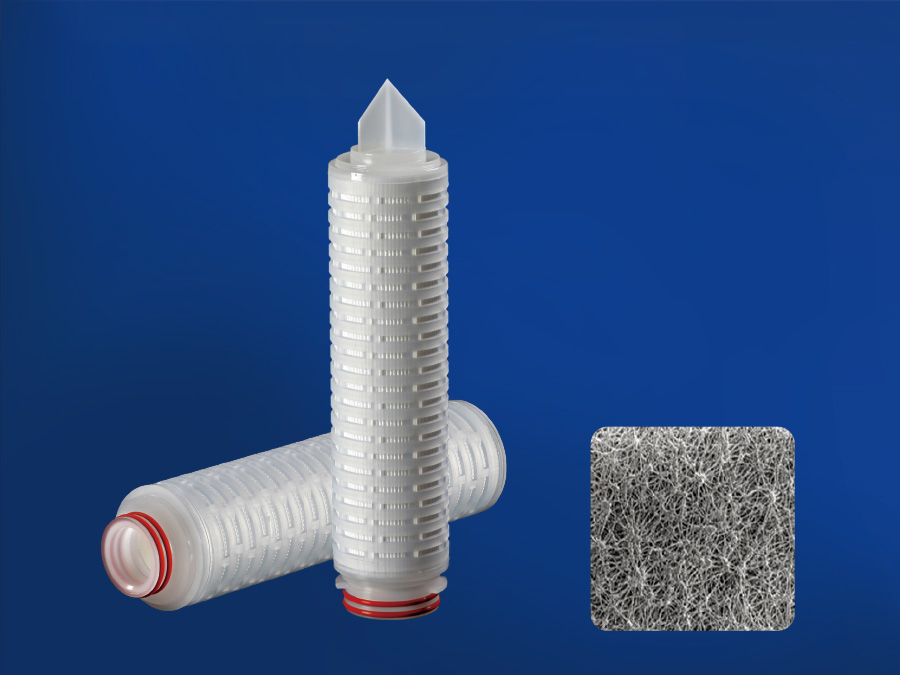

Hydrophobic PTFE / Hydrophilic PTFE Pleated Filter Cartridge
PTFE Pleated Filter Cartridge is constructed of imported natural Polytetrafluoroethylene membrane media and non-woven support materials. Adaptors are thermally welded with media without using any glue which is free from pollution.
APPLICATIONS
• Fermentation tank
• vent filter of hold tank
• Electronic industry
• Semiconductor: ultrapure gas filtration
• Chemical industry
BENEFITS
• Excellent performance of high temperature-resistance,repeat steam ability in situ.
• Low pressure drop, high flow rate, long service life
• 100% integrity tested
• No fiber-releasing
• FDA compliance material
PRODUCT SPECIFICATIONS
Outside Diameter | 2.7” (69mm |
Filter Media | Hydrophobic PTFE or Hydrophilic PTFE |
Support/Drainage | Polypropylene (PP) |
Cage/Core/End Cap | Polypropylene (PP) |
Removal Rating ( µm ) | FOR GAS:0.01,0.02 |
FOR LIQUID:0.1,0.22,0.45 |
Length (” ) | 9.75”,10”20”,30”,40” |
Seal Material | S = Silicone E = EPDM B = NBR F = E-FKM V = Viton T=Teflon |
Maximum Operating Temperature | PP : 80°C |
Maximum Operation Differential Pressure | 4.2 Bar @ 21°C 2.1 Bar @ 80°C |
011 Hydrophobic PTFE Hydrophilic PTFE Pleated Filter Cartridge.pdf
