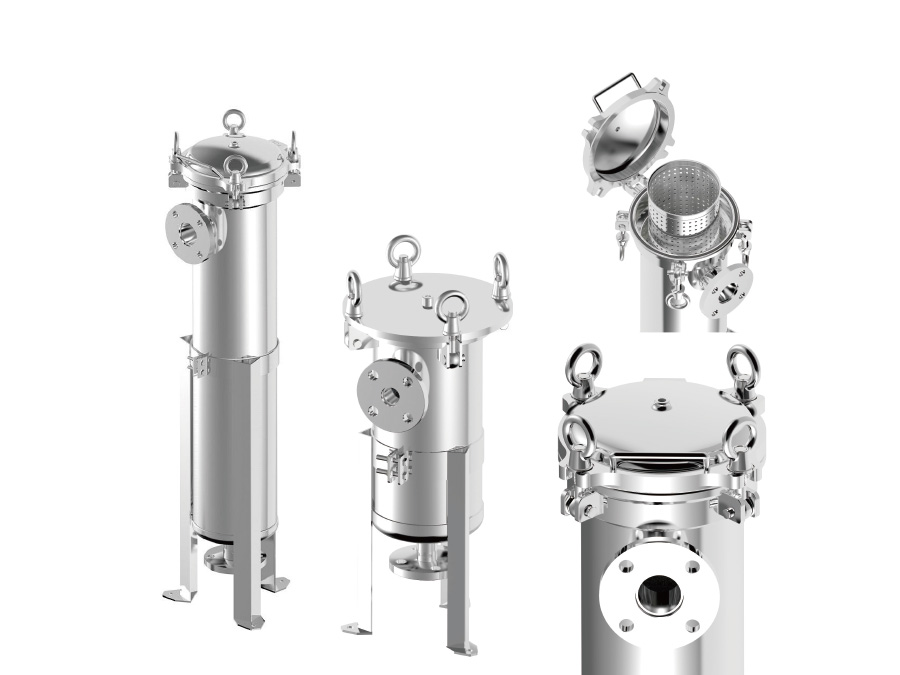

Side Entry Bag Filter Housings

HMGCF Series Side Entry Bag Filter Housings are economic single bag fifilter housings for stardard fifilter bags used for the coarse fifiltration and prefifiltration. The side entry and bottom out or side entry and side out design save the fifilter space effectively. The pressure ring and spring at the bag mouth ensure a good seal between the housing and the fifitler bag. With adjustable feet, the installation dimensions can be quickly adjusted according to the actual space.


BENEFITS

• Side entry and bottom out or side entry and side out design save the fifilter space effectively.

• Adjustable feet for adjustable installation dimensions.


APPLICATIONS

• General water treatment

• RO prefifiltration

• Prefifiltration for liquids in food and beverage,pharmaceutics, chemicals, microelectronics industries


PRODUCT SPECIFICATIONS

Body



SS 304, SS 316L





Eyebolt



SS 304



Feet



SS304



O-ring/Gasket



EPDM, PTFE, Viton, Silicone



Body Connection



Flange



Inlet/ outlet N1N2



Flange,Quick install, Thread





Pressure Gage N3

optional



1.5” Quick Install (size 1 / size 2 Bag)

M14 x 1.5 Internal Thread (size 3 / size 4 Bag)



Drain N4 (optional)



1/4”External Thread





Polishing Type



Mechanical polishing,

Electrolytic polishing,

Abrasive blastin



Polishing Precision



Inside 0.6µm

Outside 0.8µm,

Support basket 0.6µm



Maximum Operating Temperature

0.6 MPa, 1.0 MPa



Max Operation Temperature



150°C





Dimensions

Moulded lid/Flat lid

Flat lid

Size 1 Bag

Size 2 Bag

Size 3 Bag

Size 4 Bag

ATotal heigh(except pressure gage

990

1365

525

635

BInlet center distance

147

92

CDiameter

Φ204

Φ204

Φ114

Φ114

D1Terrain clearance of inlet

835

1205

445

555

D2Terrain clearance of outlet

250

300

Inlet/outlet N1, N2

1.5”/ 2”

1”/ 1.5”

EAdjustable feet

500

800

300

400

Max. Flow rate m³/h

20

40

6

12
