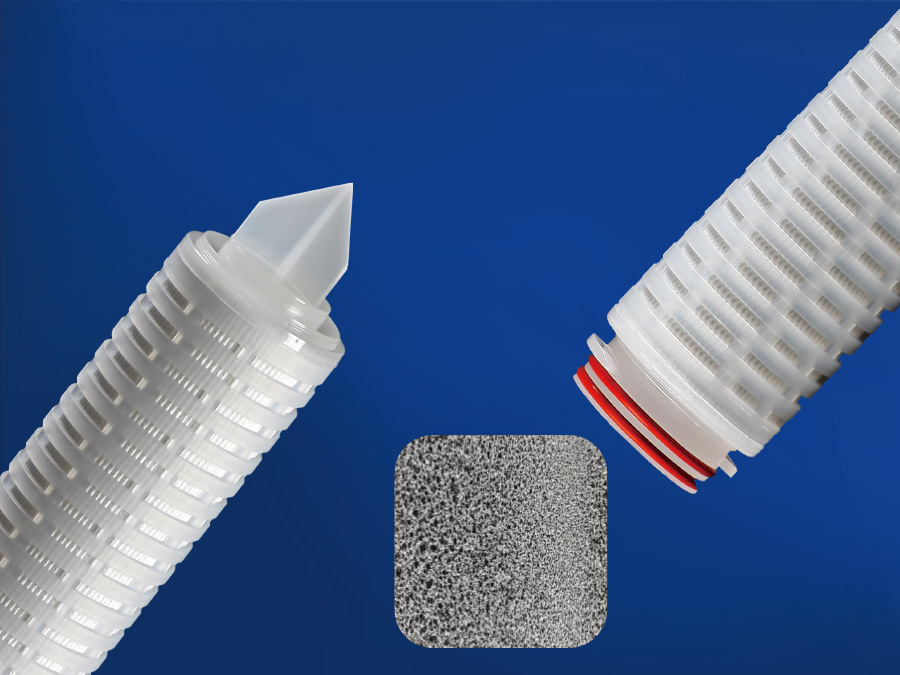

Polyethersulfone (PES) Pleated Filter Cartridge
PES Pleated Filter Cartridge is constructed of imported polyethersulfone (PES) membrane media and nonwoven support materials. The cage, core and end caps material are polypropylene. Adaptors are thermally welded with media without using any glue on that.
BENEFITS
• Excellent performance of chemical compatibility
• Hydrophilic and asymmetric membrane with high flow
• No fiber -releasing according to pharmaceutics and food industry requirements
• Experiencing 100% integrity tested
• Flushed with ultrapure water
• FDA compliance material
APPLICATIONS
• Pharmaceutics
• Sterile for food and beverage
• Fine filtration for chemical industry
• Fine filtration for wine or ultra pure water
PRODUCT SPECIFICATIONS
Outside Diameter | 2.7” (69mm) |
Filter Media | Polyethylene (PES) |
Support | Polypropylene (PP) |
Cage/Core/End Cap | Polypropylene (PP) |
Removal Rating ( µm ) | 0.1,0.22,0.45,0.65,0.8,1.2 |
Length ( ‘’ ) | 9.75”,10”20”,30”,40” |
Seal Material | S = Silicone E = EPDM B = NBR F = E-FKM V = Viton T=Teflon |
Maximum Operating Temperature | PP : 80°C |
Maximum Operation Differential Pressure | 4.2 Bar @ 21°C |
