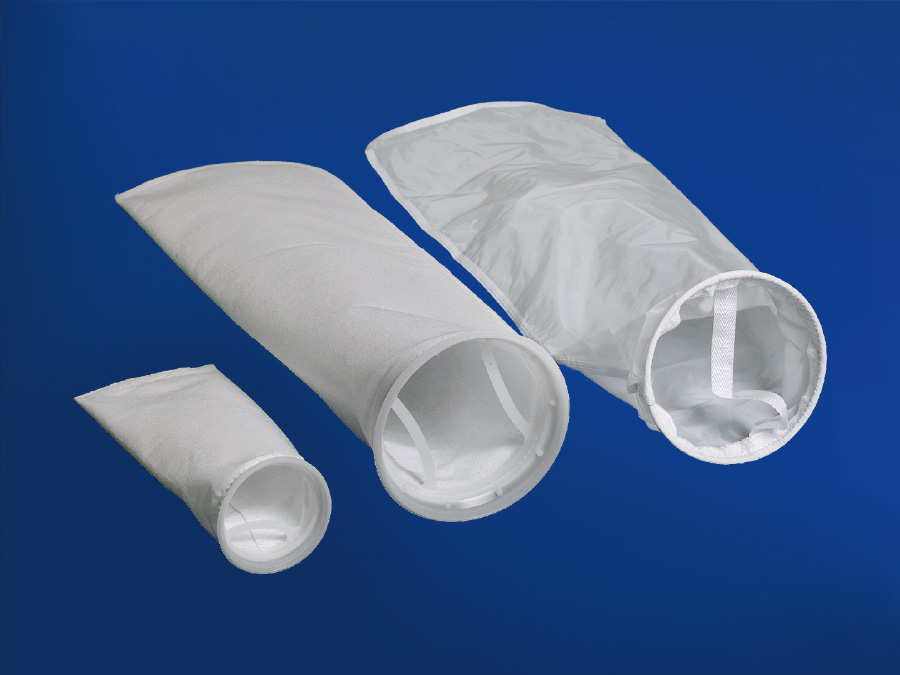

Filter Bag
Filter bags are made of high quality PP or PET or Nylon media. Different styles are available for different application requirements. It is your standard and economic option.
•Excellent chemical compatibility
•Various media types and sizes
•Nominal micron rating and absolute micron rating are available
•Water treatment
•Chemical
•Mechanical
•Food and beverage
•Pharmaceutical
•Microeletronics

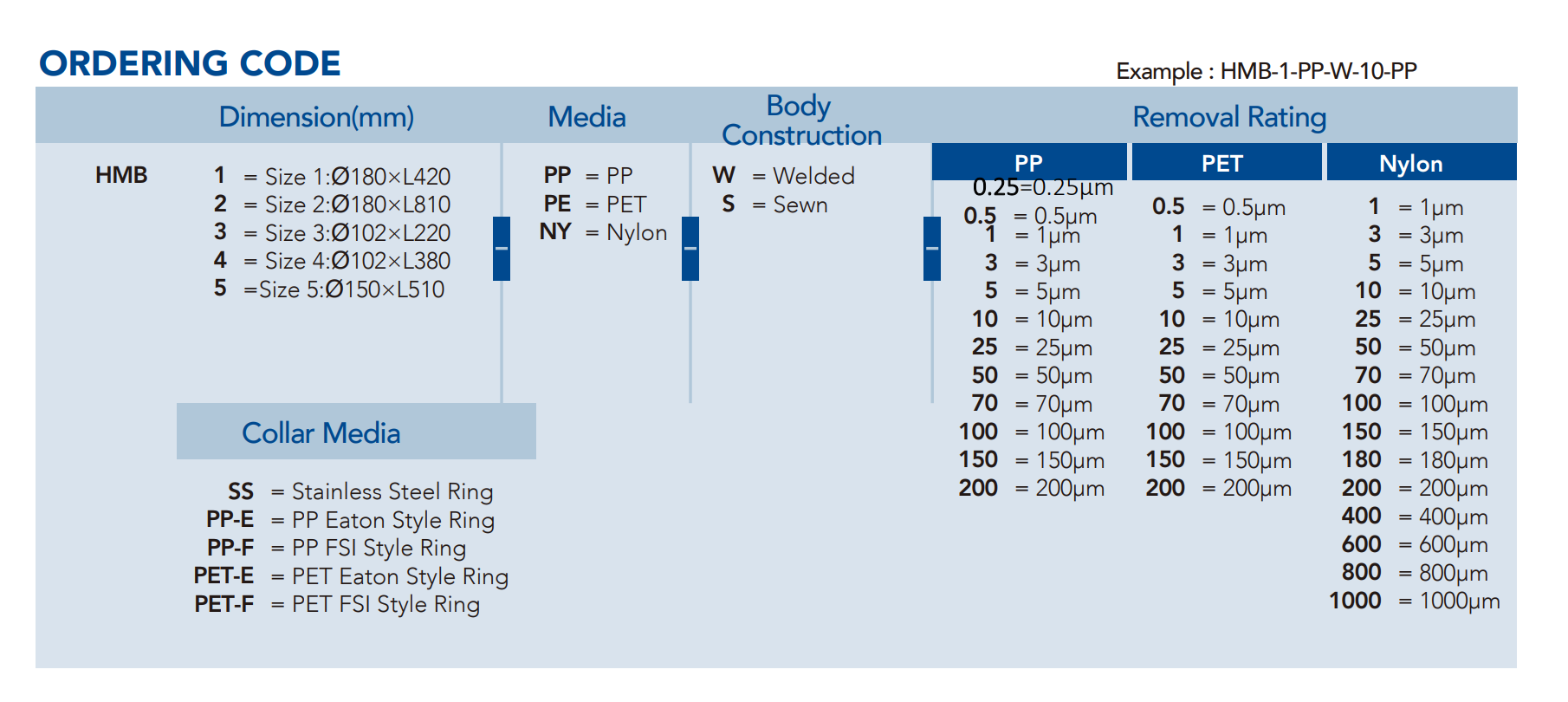

PRODUCT SPECIFICATIONS
Diameter
Size 1:Φ180×L420 ，Size 2:Φ180×L810 ，Size 3:Φ102×L220 ，Size 4:Φ102×L380 ，Size 5:Φ150×L510
Filter Media
PP, PET, Nylon
Collar Media
Stainless Steel , PP , PET
Removal Rating ( µm )
PP:0.25,0.5,1,3,5,10,25,50,70, 100,150,200
PET:1,3,5,10,25,50,70,100,150,200
Nylon:1,3,5,10,25,50,70,100,150,180,200,300,400,600,800,1000
Maximum Operating Temperature
PP: 80°C
PET: 120°C
Nylon: 160°C
Maximum Operation Differential Pressure
PP: 2.0 Bar @ 20°C
1.0 Bar @ 80°C
PET: 2.0 Bar @ 20°C
Nylon: 2.0 Bar @ 20°C
1.0 Bar @ 120°C
