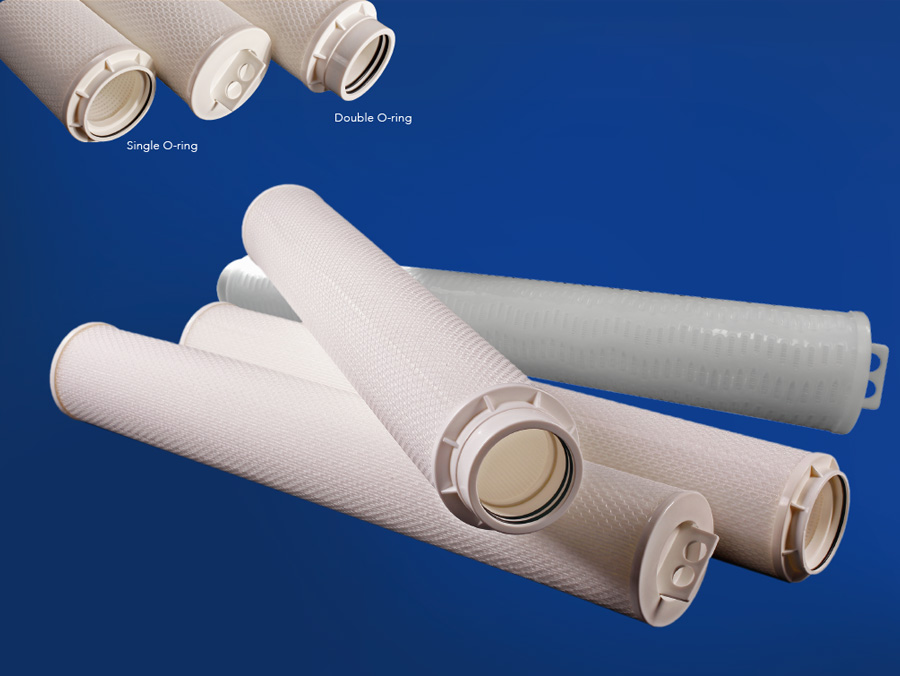

High Flow Pleated Filter Cartridge for Parker Replacement
This is a Parker replacement cartridge for the high flow applications. It is economical design for one kind of universal high flow filter housings.
BENEFITS
• High dirt holding capacity, longer service life
• Less cartridge change out to save the labor cost
• Easy handing result in less manpower
• Wide chemical compatibility
APPLICATIONS
•Prefiltration of RO, Pretreatment of sea water desalination
•Oil and gas
•Power generation condensate system
•Food and beverage
•Pharmaceutical
•Microelectronics
PRODUCT SPECIFICATIONS
Outside Diameter | 6 inch(152mm) |
Filter Media | Polypropylene (PP) |
Support/Drainage | Polypropylene (PP) |
End Cap Material |
Glass Fiber reinforced PP
|
Removal Rating ( µm ) | 1,3，5,10,20,40,50,70, 100 |
Length ( ‘’ ) | 40" |
Seal Material | Silicone ，EPDM， Buna-N，Viton |
Maximum Operating Temperature | 80℃ |
Maximum Operation Differential Pressure | 3.0 Bar ,80°C |
Suggested Maximum Flow Rate | 1300 LPM |
