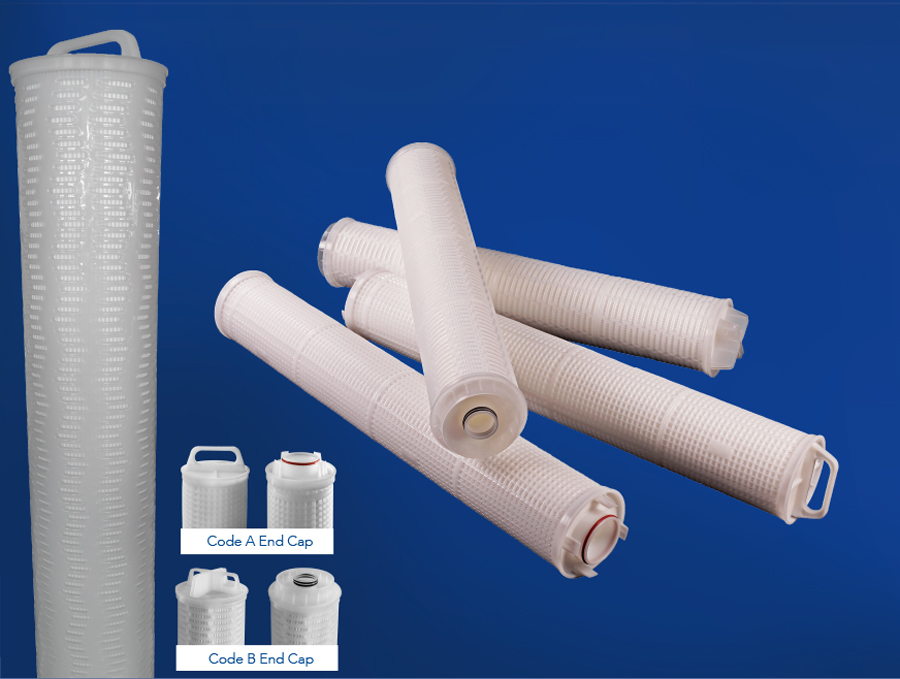

High Flow Pleated Filter Cartridge for 3M M740 Replacement
This type has a core inside which is suitable for the outside to inside flow pattern.
The pleated type has more filtration area to save more manpower when change-out the filters.
BENEFITS
• High dirt holding capacity, longer service life
• Less cartridge change out to save the labor cost
• O-ring design avoids bypass to ensure the filtration efficiency
• Easy handing resultsin less manpower
APPLICATIONS
• Municipal water
• Food and beverage
• General industrial
• Power plant water treatment
PRODUCT SPECIFICATIONS
Outside Diameter | 6.5 inch (165mm) |
Filter Media | Polypropylene, Glass Fiber; |
Support/Drainage | Polypropylene (PP) |
End Cap Material | Glass Fiber reinforced PP |
Removal Rating ( µm ) | 0.5, 1,3 5,10,20,50,70, 100 |
Length ( " ) | 40" 60" |
Seal Material | S = Silicone E = EPDM B = NBR F = E-FKM V = Viton |
Maximum Operating Temperature | 80℃ |
Maximum Operation Differential Pressure | 3.0 Bar,80°C |
Recommended Change out Differential Pressure | 2.4 Bar @ 20°C |
