Product Description
Homay Membrane Degasser for Ink is made of ultra-hydrophobic PMP hollow fiber membrane, which has a unique structure, high throughput and high gas transfer efficiency.
Homay Membrane Degasser offers a wide variety of sizes suitable for many different ink and coating applications to remove dissolved gases.
Application
Dissolved gas removal from a wide variety of inks, coatings & printing.
Ordering Information
Model
| Flux (mL/min)
| Max.Operating
Temperature
| Max.Operating
Pressure
| Connection(Ink)
| Connection(vent)
|
| HMMD-1 | 0-300
| 45ºC
| 2bar
| 1/8'NPT Female thread
| 1/8'NPT Female thread
|
| HMMD-2 | 0-600
| 45ºC
| 2bar
| 1/8'NPT Female thread
| 1/8'NPT Female thread
|
| HMMD-3 | 0-1000
| 45ºC
| 2bar
| 1/4'NPT Female thread
| 1/4'NPT Female thread
|
| HMMD-4 | 0-1500
| 45ºC
| 2bar
| 1/4'NPT Female thread
| 1/4'NPT Female thread
|
| HMMD-5 | 0-2000
| 45ºC
| 2bar
| 1/4'NPT Female thread
| 1/4'NPT Female thread
|

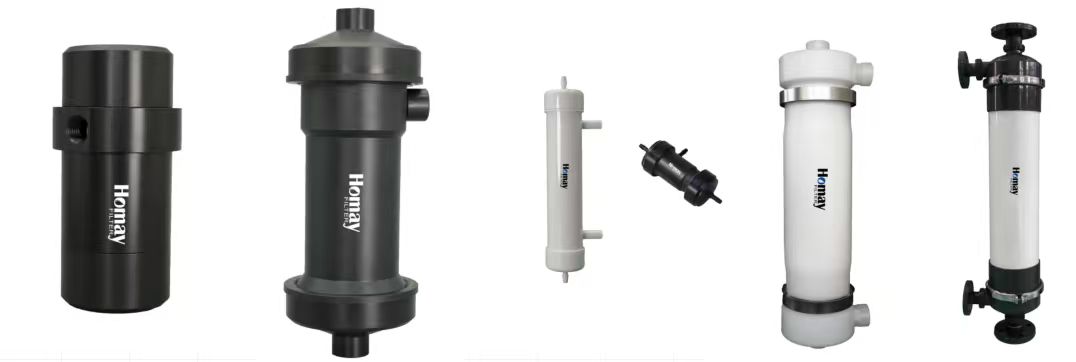

Detailed Photo
Features
--Unique hollow fiber arrangement
--PMP hollow fiber membrane has excellent resistance and longer service life
--Low pressure loss, high gas transfer performance and efficiency

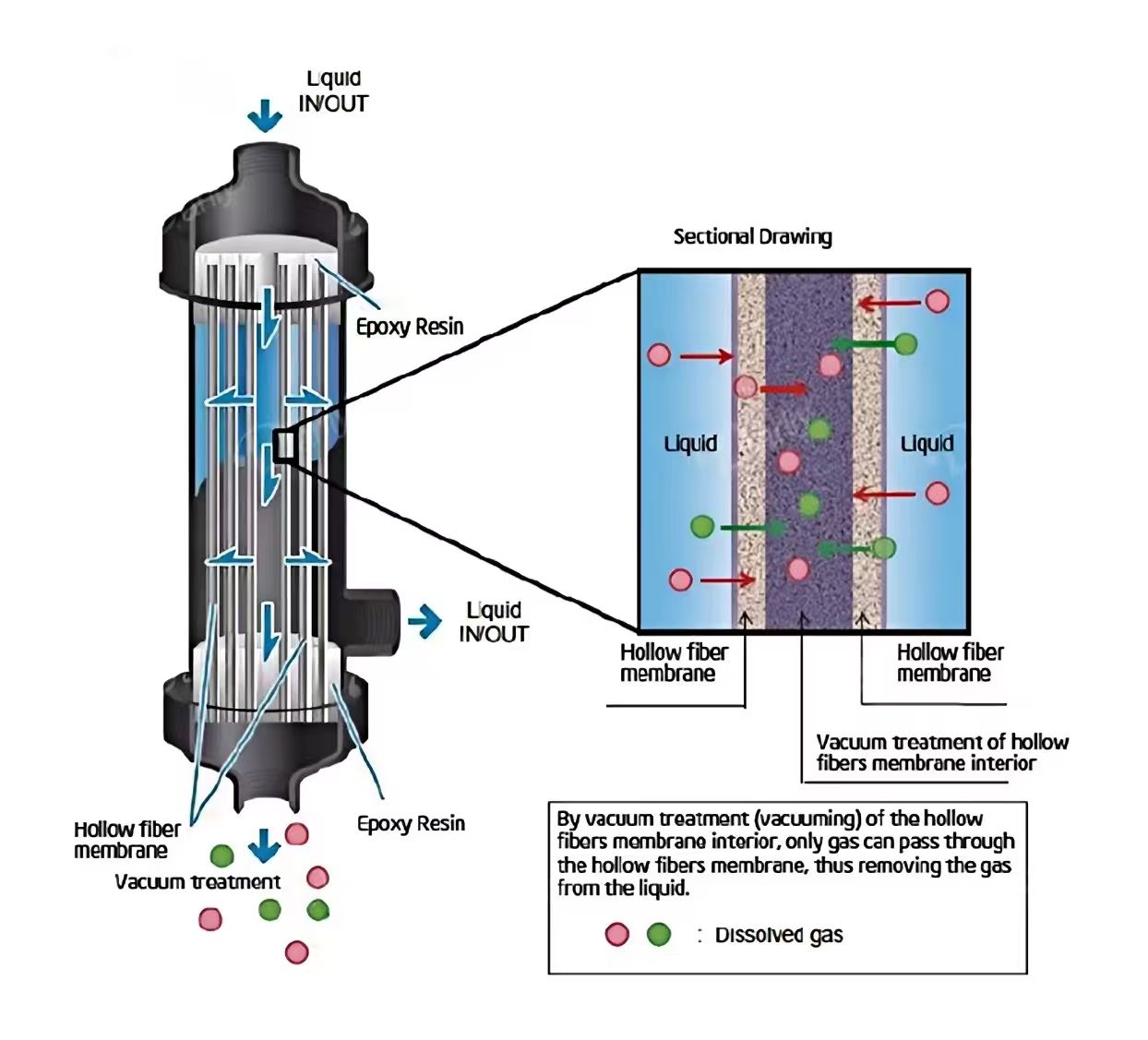

--The structure design adopts external perfusion mode, liquid flows around the outside of the hollow fiber membrane while gas is applied to the inside of the fiber,gas and liquid are separated on both sides.
