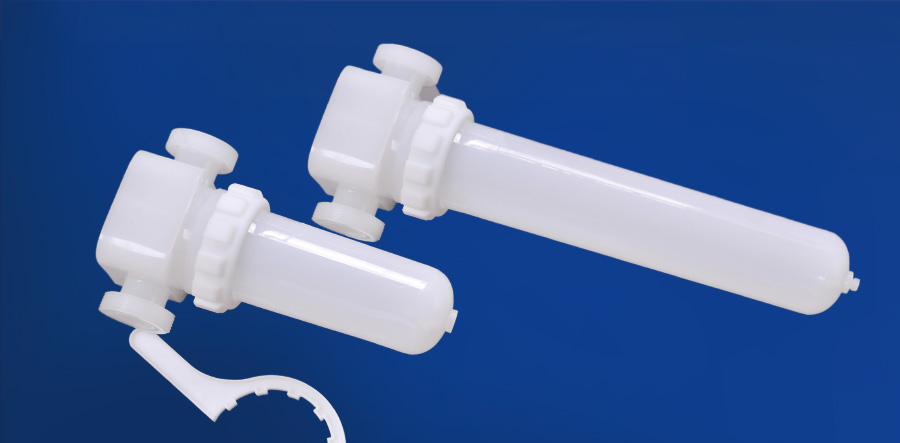

226 Flat lter Virgin PP Housing
226 Flat filter Virgin PP Housing is made of pure polypropylene. The housing is designed to fit 10’’ and 20’’ 226 single open end cartridge
BENEFITS
• Made of pure virgin PP,low precipitation.
• Accepts 10” and 20” 226 O-rings style cartridge, flat closed end.
• Wide chemical compatibility.
• Transparent housing bowl enables visual inspection of the cartridge
APPLICATIONS
• Pharmaceutics
• Food and beverage
• Chemical
• Microelectronics
• Cosmetics
• Ink water treatment
PRODUCT SPECIFICATIONS
ID | 1.10”(28mm) |
Sealing | EPDM,Viton |
Inlet/Outlet | DN40,JIS40A |
Vent | 1/4” NPT |
Drain | 1/4”NPT |
Length | 9.75” (248mm) 9.87” (250mm) 10” (254mm) 20” (508mm) |
Head | Pure Virgin PP |
Bowl | Pure Virgin PP |
Max Operating Temperature | 60°C |
Max. Operating DP | 6 Bar @ 21°C
|
