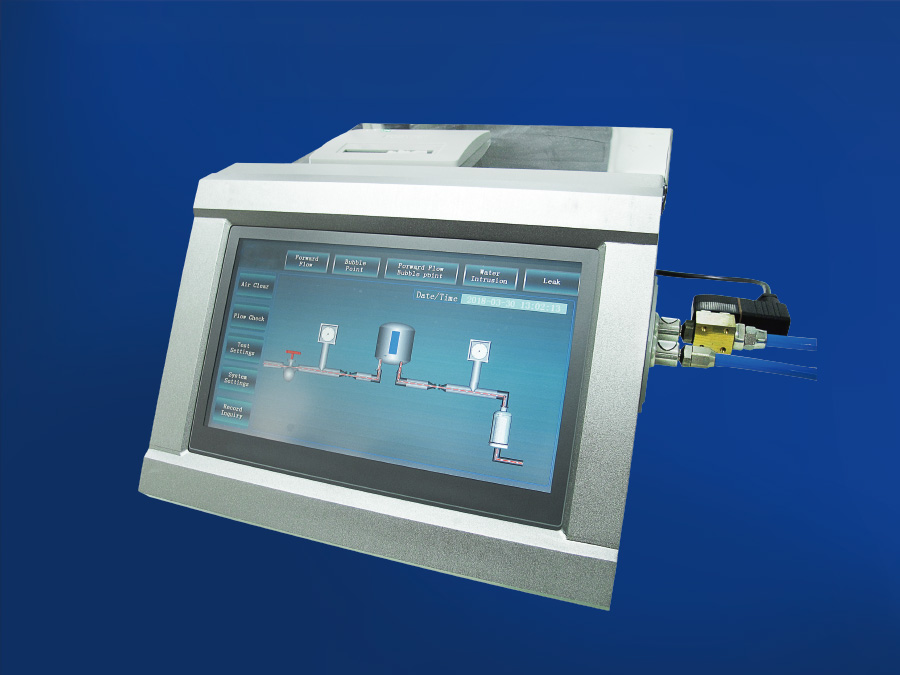

HM Filter Integrity Tester
FUNCTION
• Inspect the integrity of all kinds of filters, i.e. pleated filter cartridge,
disc membrane filter and capsule filter ect.
• Automatical running, easy to use.
• Process display in 10.4’’ screen in graphic.
• Inbuilt printer to print the results in real time.
• Records storage, inquiry, print and USB output.
• Imported high quality spare parts.
• Water spill-resistant.
FEATURE
• 3 level access control
• Quick Coupling by Staubli to avoid leakage
• External electromagnetic valve to avoid gas back
• Process displayed in graphic
PRODUCT SPECIFICATIONS
Model | HMET-101 |
Power Supply | AC110V or AC220V,50Hz or 60Hz |
Power Consumption | 70W |
Detection Accuracy | ±3% indication error ; ±0.4% range error ; Whichever is bigger |
Reproducibility Accuracy | ±3% indication error ; ±0.4% range error ; Whichever is bigger |
Detection Range | Water Intrusion Test:0.05-50ml/min. |
Bubble Points Test | 700-6000bar |
Forward Flow Test | 0.1-200ml/min |
Detection Sensitivity | Water Intrusion Test:0.01ml/min Bubble Point Test:50mbar Forward Flow Test:0.1ml/min
|
