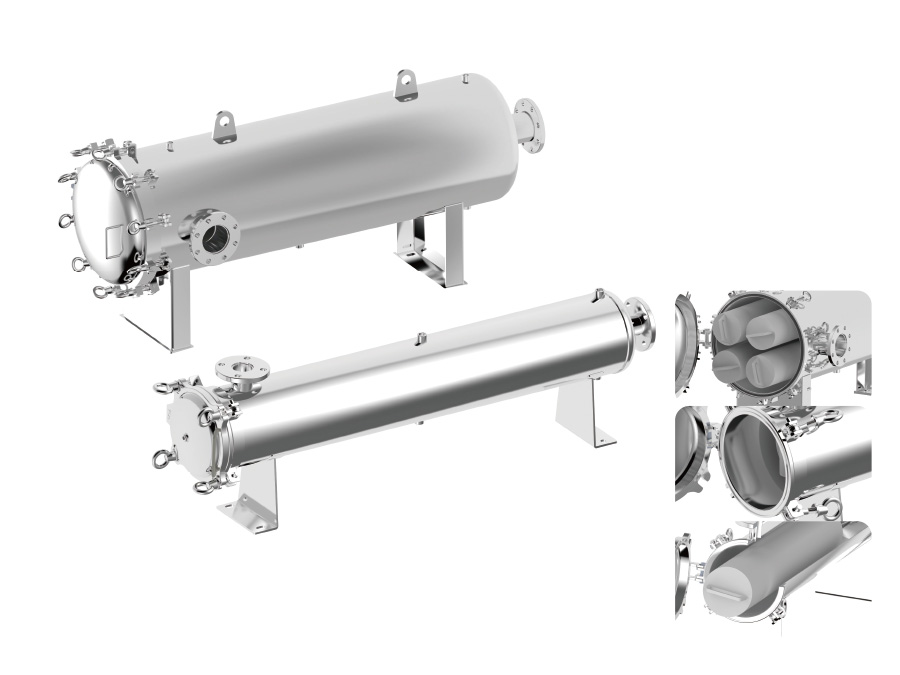

High Flow Filter Housings
High Flow Filter Housings are designed for large diameter and high flflow rate pipelines for high flflow applications.The cartridges are high flflow pleated fifilter cartridges which have much more surface area than the conventional cartridges.Its big pore ratio (as much as 50%) and straight-through type structure are suitable for high flflow and low pressure drop. This reduces the size and weight of the fifiltration unit. Therefore, the cost of investment and operation cost is reduced. Further more, the frequency of the fifilter cartridge replacement is also reduced to save labor resources.This High Flow Filter Housings have stand type and horizontal type. For big system with flflow over 1000t/h, horizontal type housings are better and usually it contains the 60” cartridges.
BENEFITS
• High flflow rate, less space needed, high effificiency
• SS 304 and SS 316L material with good corrosion resistance
• Stand type and horizontal type for choosing
APPLICATIONS
• High flflow liquid fifiltrations
• Big water treatment projects
• Sea water desalination
• Power plant water treatment
• RO prefifiltration
PRODUCT SPECIFICATIONS
Body | SS 304, SS 316 |
Eyebolt | SS 304, SS 316 |
Feet | SS304 |
O-ring/Gasket | EPDM, PTFE, Viton, Silicone |
Body Connection | Flange |
Inlet/ outlet N1、N2 | Flange,Quick install |
Pressure Gage N3 （optional） | G3/4”Thread |
Drain N4 (optional) | G1/2”Thread |
Polishing Type | Mechanical polishing Electrolytic polishing |
Polishing Precision | Inside 0.3µm Outside 0.4µm |
Maximum Operating Temperature | 0.6 MPa |
Max Operation Temperature | 50°C |
Dimensions | 1 Cartridge | 2 Cartridge |
20” | 40” | 60” | 20” | 40” | 60” |
A：Body length（except head） | 700 | 1200 | 1700 | 800 | 1300 | 1800 |
1770 |
B：Center distance of the feet bolt | 300 | 600 | 900 | 400 | 700 | 1000 |
C：Diameter | Φ230 | Φ400 |
D：Terrain clearance of inlet/outlet N1, N2 | 355 | 395 |
inlet/outlet N1, N2 | 2”/2.5”/3” | 3”/4”/5” |
038 High Flow Filter Housings.pdf
