Lenticular Filter Housings

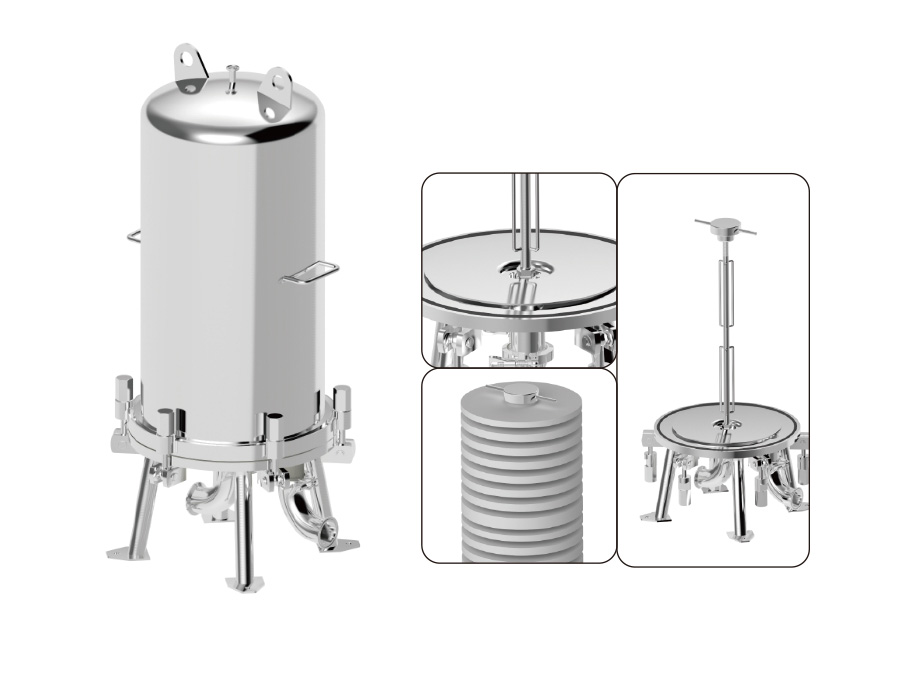

Lenticular Filter Housings are depth housings for Lenticular filters. They can replace DE filter to remove the particles in kinds of liquids for filtration, clarification and purification. The housings are constructed under sanitory grade standards with high precision polishing. There is no residual liquid after using and easy to clean. With the bottom inlet and outlet design, it can avoid the turbulence of liquid effectively and improve the filtration performance. The housing can hold maximum 4 pcs lenticular filters and meet the high flow requirement
BENEFITS
• High flow rate, less space needed, high efficiency.
• SS 304 and SS 316L material with good corrosion
resistance for many different applications
• Stand type and horizontal type for choosing
APPLICATIONS
• The particle filtration of wine, beer, syrup
• The prefiltration of juice
• The final filtration of juice
• The clarification of wine, liquid gel, olive oil
• The liquid filtration in pharmaceutical, chemical, microelectronics industry
PRODUCT SPECIFICATIONS
Material of constructions | Housing body : SS304, SS316L |
Vent/Drain | SS304, 3SS16L |
Eyebolt | SS304 |
O-mng/Gasket | EPDM, PTFE, Viton, Silicone |
Body Connection | Flange |
Inlet/ outlet N1、N2 | Thread ,Quick install |
Pressure Gage N3 （optional） | 1.5” Quick Install |
Drain N4 (optional) | 1” Quick Install |
Vent N5 (optional) | 1/2 “Quick Install |
Polishing Type | Mechanical polishing Electrolytic polishing |
Polishing Precision | Inside 0.3µm Outside 0.4µm |
Maximum Operating Temperature | 0.6 MPa |
Max Operation Temperature | 150°C |
Sterilization | SIP or steam, 121°C/30min |
Dimensions | 12"Depth-stack Cartridge | 16"Depth-stack Cartridge |
1PC | 2PC | 3PC | 4PC | 1PC | 2PC | 3PC | 4PC |
A:Total height (except pressure gage) | 950 | 1210 | 1490 | 1760 | 960 | 1230 | 1500 | 1770 |
B:Inlet center distance | 200 | 250 |
C:Diameter | Ø325 | Ø450 |
D:Terrain clearance of inlet/outlet N1. N2 | 280 | 280 |
Inlet/outlet N1, N2 Inlet/outlet N1, N2 | 2” | 2” |
038 Lenticular Filter Housings.pdf
